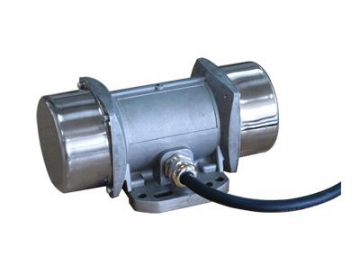

Vibradores Externos, con Motor Eléctrico Trifásico de 2 Polos
Solicite un presupuesto
Los vibradores externos de las series ZF pueden utilizarse para la compactación de concreto y como fuente de vibración para diversos equipamientos, tales como cintas transportadoras, equipos de cribado, maquinaria de envasado, etc. Asimismo, los vibradores externos pueden utilizarse en muchas otras áreas.
Fuente de alimentación trifásica, 220V/380V, 50Hz/60Hz
2 Polos, 3000/3600rpm

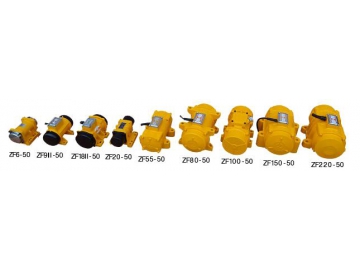

Modelos Opcionales
Modelo | Material de la carcasa | Fuerza centrífuga máxima (kN) | Frecuencia de vibración (vpm) | Amplitud (valor medio) (mm) | Amplitud (valor total) (mm) | Corriente nominal (A) | Potencia nominal de salida (kW) | Potencia nominal de entrada (kW) | Peso neto (kg) |
ZF4-50 | Aluminio | 0.44 | 3000/3600 | 2 | 4 | 0.28/0.16 | 0.04 | 0.1 | 2.1 |
ZF6-50 | Aluminio | 0.6 | 3000/3600 | 1.65 | 3.3 | 0.31/0.18 | 0.06 | 0.11 | 4.5 |
ZF9-50 | Hierro fundido gris | 1 | 3000/3600 | 1.2 | 2.4 | 0.50/0.29 | 0.09 | 0.16 | 8.5 |
ZF9Ⅱ-50 | Aluminio | 1 | 3000/3600 | 1.5 | 3 | 0.50/0.29 | 0.09 | 0.16 | 6.5 |
ZF9Ⅲ-50 | Aluminio | 2 | 3000/3600 | 2.5 | 5 | 0.50/0.29 | 0.09 | 0.16 | 6.8 |
ZF18-50 | Hierro fundido gris | 1.7 | 3000/3600 | 2 | 4 | 0.83/0.48 | 0.18 | 0.25 | 11 |
ZF18Ⅱ-50 | Aluminio | 1.7 | 3000/3600 | 2.7 | 5.4 | 0.83/0.48 | 0.18 | 0.25 | 8 |
ZF20-50 | Aluminio | 2.87 | 3000/3600 | 3.1 | 6.2 | 0.85/0.50 | 0.2 | 0.28 | 7.3 |
ZF20Ⅱ-50 | Aluminio | 1.23 | 3000/3600 | 1.3 | 2.6 | 0.85/0.50 | 0.2 | 0.28 | 7 |
ZF25Ⅱ-50 | Aluminio | 3 | 3000/3600 | 2.7 | 5.4 | 1.02/0.59 | 0.25 | 0.33 | 11 |
ZF37Ⅱ-50 | Aluminio | 4 | 3000/3600 | 3.6 | 7.2 | 1.49/0.86 | 0.37 | 0.52 | 11 |
ZF55-50 | Aluminio | 5 | 3000/3600 | 2.5 | 5 | 2.1/1.20 | 0.55 | 0.65 | 18 |
ZF80-50 | Aluminio | 6 | 3000/3600 | 2.5 | 5 | 3.1/1.80 | 0.8 | 0.95 | 27 |
ZF100-50 | Acero fundido | 9 | 3000/3600 | 2.8 | 5.6 | 3.5/2.00 | 1 | 1.3 | 32 |
ZF110-50 | Aluminio | 6 | 3000/3600 | 2.5 | 5 | 4.1/2.35 | 1.1 | 1.35 | 27 |
ZF110-50B | Aluminio | 5.5 | 3000/3600 | 2.8 | 5.6 | 4.1/2.3 | 1.1 | 1.4 | 18 |
HZ2-7B | Aluminio | 6 | 3000/3600 | 2.5 | 5 | 5.5/3.2 | 1.5 | 1.8 | 27 |
ZF150-50 | Aluminio | 9 | 3000/3600 | 2.4 | 4.8 | 5.5/3.20 | 1.5 | 1.8 | 38 |
ZF150Ⅲ-50 | Acero fundido | 17.7 | 3000/3600 | 4.3 | 8.6 | 5.7/3.3 | 1.5 | 1.9 | 42 |
ZF165-50 | Acero fundido | 20.2 | 3000/3600 | 4.52 | 9.04 | 6.0/3.5 | 1.65 | 2.2 | 45.5 |
ZF150-50B | Aluminio | 12 | 3000/3600 | 2.8 | 5.6 | 6.9/4.0 | 2 | 2.35 | 38 |
ZF150Ⅳ-50 | Aluminio | 9 | 3000/3600 | 2.4 | 4.8 | 6.9/4.0 | 2 | 2.35 | 40 |
ZF150Ⅳ-50B | Aluminio | 12 | 3000/3600 | 2.8 | 5.6 | 6.9/4.0 | 2 | 2.35 | 40 |
ZF220Ⅱ-50 | Hierro dúctil | 20 | 3000/3600 | 3.3 | 6.6 | 7.4/4.30 | 2.2 | 2.6 | 66 |
ZF220Ⅲ-50 | Hierro dúctil | 25 | 3000/3600 | 3.3 | 6.6 | 7.4/4.30 | 2.2 | 2.6 | 76 |
ZF250-50 | Hierro dúctil | 30 | 3000/3600 | 3 | 6 | 8.5/4.9 | 2.5 | 3 | 100 |
ZF370-50 | Acero fundido | 50 | 3000/3600 | 3 | 6 | 12.3/7.10 | 3.7 | 4.3 | 170 |
ZF550-50 | Hierro dúctil | 63 | 3000/3600 | 3 | 6 | 22.9/13.20 | 5.5 | 6.4 | 230 |
ZF1000-50 | Hierro dúctil | 100 | 3000/3600 | 3.74 | 7.48 | 31.2/18 | 10 | 11 | 270 |

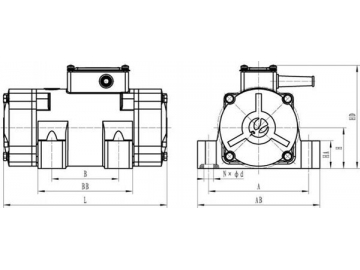

Especificaciones de Instalación
Modelo | Dimensiones de instalación (mm) | Dimensiones totales (mm) | |||||||
A | B | N×Φd | H | HA | AB | BB | HD | L | |
ZF4-50 | 85/92 | 60/23-39 | 8×Φ7 | 39 | 10 | 110 | 74 | 77 | 165 |
ZF6-50 | 100/100/110 | 30/60/96 | 8×Φ9/4×Φ7 | 79 | 23 | 127 | 119 | 126 | 225 |
ZF9-50 | 120 | 110 | 4×Φ12 | 64 | 12 | 148 | 136 | 145 | 220 |
ZF9Ⅱ-50 | 120 | 110 | 4×Φ12 | 64 | 12 | 148 | 136 | 145 | 220 |
ZF9Ⅲ-50 | 106/140/115/135 | 68/65/135/115 | 8×Φ11/4×Φ13 | 82 | 25 | 164 | 158 | 140 | 222 |
ZF18-50 | 145 | 90 | 4×Φ12 | 68 | 18 | 175 | 122 | 150 | 225 |
ZF18Ⅱ-50 | 120/145 | 110/70-90 | 8×Φ11 | 68 | 18 | 175 | 136 | 165 | 225 |
ZF20-50 | 125/135/140 | 90/115/65 | 8×Φ12.5/4×Φ10.5 | 79 | 26 | 160 | 136 | 126 | 247 |
ZF20Ⅱ-50 | 125/135/140 | 90/115/65 | 8×Φ12.5/4×Φ14.5 | 79 | 26 | 160 | 136 | 126 | 207 |
ZF25Ⅱ-50 | 120/145 | 110/70-90 | 8×Φ11 | 79 | 18 | 175 | 136 | 178 | 296 |
ZF37Ⅱ-50 | 120/145 | 110/70-90 | 8×Φ11 | 79 | 18 | 175 | 136 | 178 | 296 |
ZF55-50 | 180 | 120 | 4×Φ17 | 74 | 50 | 220 | 168 | 190 | 294 |
ZF80-50 | 200 | 180 | 4×Φ18.5 | 100 | 180 | 240 | 220 | 220 | 374 |
ZF100-50 | 180 | 100 | 4×Φ17 | 93 | 50 | 214 | 140 | 93 | 357 |
ZF110-50 | 200 | 180 | 4×Φ18.5 | 100 | 180 | 240 | 220 | 220 | 374 |
ZF110-50B | 180 | 120 | 4×Φ17 | 74 | 50 | 220 | 168 | 190 | 294 |
HZ2-7B | 200 | 180 | 4×Φ18.5 | 100 | 180 | 240 | 220 | 220 | 374 |
ZF150-50 | 230 | 150 | 4×Φ18.5 | 106 | 106 | 280 | 200 | 238 | 350 |
ZF150Ⅲ-50 | 190 | 140 | 4×Φ17 | 104 | 50 | 230 | 180 | 230 | 433 |
ZF165-50 | 190 | 140 | 4×Φ17 | 104 | 50 | 230 | 180 | 230 | 467 |
ZF150-50B | 230 | 150 | 4×Φ18.5 | 106 | 106 | 280 | 200 | 238 | 350 |
ZF150Ⅳ-50 | 230 | 150 | 4×Φ18.5 | 106 | 106 | 280 | 200 | 240 | 375 |
ZF150Ⅳ-50B | 230 | 150 | 4×Φ18.5 | 106 | 106 | 280 | 200 | 240 | 375 |
ZF220Ⅱ-50 | 230 | 150 | 4×Φ23.5 | 106 | 40 | 280 | 200 | 240 | 420 |
ZF220Ⅲ-50 | 260 | 150 | 4×Φ26 | 140 | 23 | 315 | 204 | 297 | 415 |
ZF250-50 | 310 | 170 | 4×Φ33 | 160 | 30 | 380 | 240 | 335 | 440 |
ZF370-50 | 350 | 170 | 4×Φ33 | 165 | 50 | 430 | 235 | 335 | 490 |
ZF550-50 | 380 | 250 | 4×Φ39 | 200 | 45 | 455 | 340 | 405 | 610 |
ZF1000-50 | 380 | 125 125 | 6×Φ39 | 200 | 40 | 455 | 365 | 405 | 686 |
