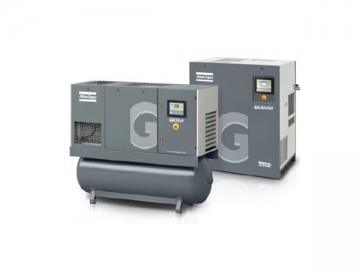

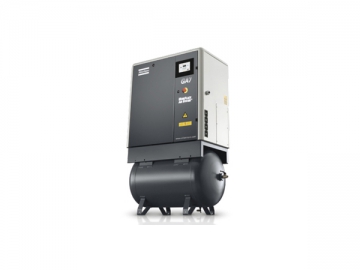

Compresores de aire con inyección de aceite (GA 5-11)
Los compresores de aire GA ofrecen una excelente fiabilidad, una operación con niveles mínimos de generación de ruidos, integración de aire y tratamiento de condensado.
| Tipo de compresores | Máxima presión de trabajo (bar) | Capacidad FAD*mín.-máx. ( m³/min) | Potencia recomendada(kw) |
| 50 Hz VERSIÓN | |||
| GA 5 7.5 | 7.5 | 0.9 | 5.5 |
| 8.5 | 8.5 | 0.8 | 5.5 |
| 10 | 10 | 0.7 | 5.5 |
| 13 | 13 | 0.5 | 5.5 |
| GA 7 7.5 | 7.5 | 1.2 | 7.5 |
| 8.5 | 8.5 | 1.1 | 7.5 |
| 10 | 10 | 1.0 | 7.5 |
| 13 | 13 | 0.8 | 7.5 |
| GA 11 7.5 | 7.5 | 1.7 | 11 |
| 8.5 | 8.5 | 1.6 | 11 |
| 10 | 10 | 1.5 | 11 |
| 13 | 13 | 1.2 | 11 |
Compresores de aire con inyección de aceite (GA 15-22)
| Tipo de compresores | Máxima presión de trabajo | Capacidad FAD*mín.-máx. (m³/min) | Potencia del motor (kw) | |
| Lugar de trabajo (bar) | Completo (bar) | |||
| 50 Hz VERSIÓN | ||||
| GA 15 7.5 | 7.5 | 7.3 | 2.6 | 15 |
| 8.5 | 8.5 | 8.3 | 2.4 | 15 |
| 10 | 10 | 9.8 | 2.2 | 15 |
| 13 | 13 | 12.8 | 1.8 | 15 |
| GA 18 7.5 | 7.5 | 7.3 | 3.2 | 18.5 |
| 8.5 | 8.5 | 8.3 | 3.0 | 18.5 |
| 10 | 10 | 9.8 | 2.6 | 18.5 |
| 13 | 13 | 12.8 | 2.2 | 18.5 |
| GA22 7.5 | 7.5 | 7.3 | 3.6 | 22 |
| 8.5 | 8.5 | 8.3 | 3.5 | 22 |
| 10 | 10 | 9.8 | 3.1 | 22 |
| 13 | 13 | 12.8 | 2.7 | 22 |
Compresores de aire con inyección de aceite (GA 11⁺—30)
| Tipo de compresores | Máxima presión de trabajo | Capacidad FAD*mín.-máx. (m³/min) | Potencia del motor (kw) | |
| Lugar de trabajo (bar) | Completo (bar) | |||
| 50 Hz VERSIÓN | ||||
| GA 11 7.5 | 7.5 | 7.3 | 2.1 | 11 |
| 8.5 | 8.5 | 8.3 | 2.0 | 11 |
| 10 | 10 | 9.8 | 1.8 | 11 |
| 13 | 13 | 12.8 | 1.5 | 11 |
| GA 15 7.5 | 7.5 | 7.3 | 2.8 | 15 |
| 8.5 | 8.5 | 8.3 | 2.6 | 15 |
| 10 | 10 | 9.8 | 2.4 | 15 |
| 13 | 13 | 12.8 | 2.0 | 15 |
| GA18 7.5 | 7.5 | 7.3 | 3.5 | 18.5 |
| 8.5 | 8.5 | 8.3 | 3.3 | 18.5 |
| 10 | 10 | 9.8 | 2.9 | 18.5 |
| 13 | 13 | 12.8 | 2.5 | 18.5 |
| GA22 7.5 | 7.5 | 7.3 | 4.1 | 22 |
| 8.5 | 8.5 | 8.3 | 3.9 | 22 |
| 10 | 10 | 9.8 | 3.5 | 22 |
| 13 | 13 | 12.8 | 3.0 | 22 |
| GA26 7.5 | 7.5 | 7.3 | 4.8 | 26 |
| 8.5 | 8.5 | 8.3 | 4.6 | 26 |
| 10 | 10 | 9.8 | 4.2 | 26 |
| 13 | 13 | 12.8 | 3.6 | 26 |
| GA30 7.5 | 7.5 | 7.3 | 5.4 | 30 |
| 8.5 | 8.5 | 8.3 | 5.2 | 30 |
| 10 | 10 | 9.8 | 4.8 | 30 |
| 13 | 13 | 12.8 | 4.1 | 30 |
Compresores de aire con inyección de aceite (GA 30⁺—90)
| Tipo de compresores | Max Máxima presión de trabajo (bar) | Capacity FAD* (m³/min) | Potencia del motor (kw) |
| GA 30 7.5 | 7.5 | 5.5 | 30 |
| 8 | 8 | 5.6 | 30 |
| 10 | 10 | 4.8 | 30 |
| 13 | 13 | 3.9 | 30 |
| GA 37 7.5 | 7.5 | 6.4 | 37 |
| 8 | 8 | 6.3 | 37 |
| 10 | 10 | 5.6 | 37 |
| 13 | 13 | 4.5 | 37 |
| GA37 7.5 | 7.5 | 7.1 | 37 |
| 8 | 8 | 6.9 | 37 |
| 10 | 10 | 5.9 | 37 |
| 13 | 13 | 4.9 | 37 |
| GA45 7.5 | 7.5 | 7.7 | 45 |
| 8 | 8 | 7.3 | 45 |
| 10 | 10 | 6.5 | 45 |
| 13 | 13 | 5.5 | 45 |
| GA45 7.5 | 7.5 | 8.6 | 45 |
| 8 | 8 | 8.0 | 45 |
| 10 | 10 | 7.3 | 45 |
| 13 | 13 | 6.1 | 45 |
| GA55 7.5 | 7.5 | 9.9 | 55 |
| 8 | 8 | 9.3 | 55 |
| 10 | 10 | 8.6 | 55 |
| 13 | 13 | 7.4 | 55 |
| GA55 7.5 | 7.5 | 10.6 | 55 |
| 8 | 8 | 10.1 | 55 |
| 10 | 10 | 8.7 | 55 |
| GA75 7.5 | 7.5 | 324.0 | 75 |
| 8 | 8 | 311.0 | 75 |
| 10 | 10 | 287.3 | 75 |
| 13 | 13 | 247.3 | 75 |
| GA75 7.5 | 7.5 | 13.1 | 75 |
| 8 | 8 | 12.3 | 75 |
| 10 | 10 | 11.0 | 75 |
| 13 | 13 | 9.7 | 75 |
| GA90 7.5 | 7.5 | 16.2 | 90 |
| 8 | 8 | 15.6 | 90 |
| 10 | 10 | 14.1 | 90 |
| 13 | 13 | 12.0 | 90 |
Oil-injected screw air Compressors (GA 90-150)
| Tipo de compresores | Máxima presión de trabajo | Capacity FAD* | Potencia del motor (kw) | ||
| Pack | Completo | Pack |
| ||
| (bar) | (bar) | (m³/min) | (m³/min) | ||
| GA 90 ⁺ 5.5 | 5.5 | 5.3 | 19.8 | 20.0 | 90 |
| 7.5 | 7.5 | 7.3 | 17.5 | 17.6 | 90 |
| 8.5 | 8.5 | 8.3 | 16.4 | 16.5 | 90 |
| 10 | 10 | 9.8 | 14.6 | 14.6 | 90 |
| 14 | 14 | 13.8 | 11.8 | 12.2 | 90 |
| GA110 7.5 | 7.5 | 7.3 | 20.5 | 20.6 | 110 |
| 8.5 | 8.5 | 8.3 | 19.4 | 19.6 | 110 |
| 10 | 10 | 9.8 | 17.8 | 17.8 | 110 |
| GA110 ⁺ 5.5 | 5.5 | 5.3 | 24.1 | 24.2 | 110 |
| 7.5 | 7.5 | 7.3 | 21.4 | 21.4 | 110 |
| 8.5 | 8.5 | 8.3 | 20.2 | 20.3 | 110 |
| 10 | 10 | 9.8 | 18.4 | 18.4 | 110 |
| 14 | 14 | 13.8 | 14.7 | 15.1 | 110 |
| GA132 7.5 | 7.5 | 7.3 | 24.3 | 24.4 | 132 |
| 8.5 | 8.5 | 8.3 | 23.1 | 23.2 | 132 |
| 10 | 10 | 9.8 | 21.4 | 21.4 | 132 |
| GA132 ⁺ 5.5 | 5.5 | 5.3 | 28.3 | 28.5 | 132 |
| 7.5 | 7.5 | 7.3 | 25.4 | 25.5 | 132 |
| 8.5 | 8.5 | 8.3 | 24.1 | 24.1 | 132 |
| 10 | 10 | 9.8 | 22.1 | 22.1 | 132 |
| 14 | 14 | 13.8 | 17.7 | 18.1 | 132 |
| GA160 7.5 | 7.5 | 7.3 | 30.3 | 30.4 | 160 |
| 8.5 | 8.5 | 8.3 | 28.8 | 28.9 | 160 |
| 10 | 10 | 9.8 | 26.6 | 26.6 | 160 |
| GA160 ⁺ 10 | 10 | 9.8 | 26.6 | 26.6 | 160 |
| 14 | 14 | 13.8 | 21.7 | 22.1 | 160 |
Compresores de aire con inyección de aceite (GA200-500 Twin)
| Tipo de compresores | Máxima presión de trabajo | Capacity FAD* | Potencia del motor (kw) | |
| Completo | completo | Pack/completo | ||
| (bar) | (bar) | (m³/min) | ||
| GA 200 | 7.5 | 7.25 | 36.1 | 200 |
| 8.5 | 8.25 | 34.0 | 200 | |
| 10 | 9.75 | 30.7 | 200 | |
| 13 | 12.75 | 26.1 | 200 | |
| GA250 | 7.5 | 7.25 | 43.7 | 250 |
| 8.5 | 8.25 | 41.7 | 250 | |
| 10 | 9.75 | 37.8 | 250 | |
| 13 | 12.75 | 31.7 | 250 | |
| GA315 | 7.5 | 55.8 | 315 | |
| 8.5 | 51.9 | 315 | ||
| 10 | 47.1 | 315 | ||
| GA355 | 7.5 | 63.1 | 355 | |
| 8.5 | 58.2 | 355 | ||
| 10 | 53.5 | 355 | ||
| 13 | 43.9 | 355 | ||
| GA400 | 7.5 | 70.6 | 400 | |
| 8.5 | 66.6 | 400 | ||
| 10 | 60.8 | 400 | ||
| 13 | 50.7 | 400 | ||
| GA450 | 7.5 | 78.0 | 450 | |
| 8.5 | 74.5 | 450 | ||
| 10 | 68.8 | 450 | ||
| 13 | 57.7 | 450 | ||
| GA500 | 7.5 | 84.7 | 500 | |
| 8.5 | 80.9 | 500 | ||
| 10 | 75.5 | 500 | ||
| 13 | 64.2 | 500 | ||
Compresores de aire con inyección de aceite (GA 5-11)VSD
| Tipo de compresores | Max Máxima presión de trabajo (bar) | Capacidad FAD*mín.-máx. (m³/min) | Potencia del motor (kw) |
| 50 Hz VERSIÓN | |||
| GA 5 VSD | 4 | 0.45-0.91 | 5.5 |
| 7.5 | 0.43-0.89 | 5.5 | |
| 10 | 0.40-0.72 | 5.5 | |
| 13 | 0.35-0.50 | 5.5 | |
| GA 7 VSD | 4 | 0.45-1.22 | 7.5 |
| 7.5 | 0.43-1.21 | 7.5 | |
| 10 | 0.40-1.02 | 7.5 | |
| 13 | 0.35-0.81 | 7.5 | |
| GA 11 VSD (10 bar) | 4 | 0.44-1.75 | 11 |
| 7.5 | 0.42-1.70 | 11 | |
| 10 | 0.38-1.51 | 11 | |
| GA 11 VSD (13 bar) | 4 | 0.43-1.51 | 11 |
| 7.5 | 0.41-1.48 | 11 | |
| 10 | 0.37-1.46 | 11 | |
| 13 | 0.35-1.25 | 11 | |
Compresores de aire con inyección de aceite (GA 7-37) VSD
| Tipo de compresores | Max Máxima presión de trabajo (bar) | Capacidad FAD*mín.-máx. (m³/min) | Potencia del motor (kw) |
| 50 Hz VERSIÓN | |||
| GA 7 VSD ⁺ | 5.5 | 7.3 | 15 |
| 7 | 8.3 | 15 | |
| 9.5 | 9.8 | 15 | |
| 12.5 | 12.8 | 15 | |
| GA 11 VSD ⁺ | 5.5 | 7.3 | 18.5 |
| 7 | 8.3 | 18.5 | |
| 9.5 | 9.8 | 18.5 | |
| 12.5 | 12.8 | 18.5 | |
| GA 15 VSD ⁺ | 5.5 | 7.3 | 22 |
| 7 | 8.3 | 22 | |
| 9.5 | 9.8 | 22 | |
| 12.5 | 12.8 | 22 | |
| GA 18 VSD ⁺ | 4 | 7.3 | 22 |
| 7 | 8.3 | 22 | |
| 9.5 | 9.8 | 22 | |
| 12.5 | 12.8 | 22 | |
| GA 22 VSD ⁺ | 4 | 7.3 | 22 |
| 7 | 8.3 | 22 | |
| 9.5 | 9.8 | 22 | |
| 12.5 | 12.8 | 22 | |
| GA 26 VSD ⁺ | 4 | 7.3 | 22 |
| 7 | 8.3 | 22 | |
| 9.5 | 9.8 | 22 | |
| 12.5 | 12.8 | 22 | |
| GA 30 VSD ⁺ | 4 | 7.3 | 22 |
| 7 | 8.3 | 22 | |
| 9.5 | 9.8 | 22 | |
| 12.5 | 12.8 | 22 | |
| GA 37 VSD ⁺ | 4 | 7.3 | 22 |
| 7 | 8.3 | 22 | |
| 9.5 | 9.8 | 22 | |
| 12.5 | 12.8 | 22 | |
Compresores de aire con inyección de aceite (GA 15-30) VSD
| Tipo de compresores | Max Máxima presión de trabajo (bar) | Capacidad FAD*mín.-máx. (m³/h) | Potencia del motor (kw) | |
| Min | Max | |||
| 50 Hz VERSIÓN | ||||
| GA1 5 VSD | 4 | 57.6 | 175.3 | 15 |
| 7 | 57.2 | 174.6 | 15 | |
| 10 | 64.8 | 149.8 | 15 | |
| 13 | 73.4 | 118.1 | 15 | |
| GA18 VSD | 4 | 57.6 | 216.4 | 18 |
| 7 | 57.2 | 216.0 | 18 | |
| 10 | 64.8 | 187.2 | 18 | |
| 13 | 73.4 | 151.2 | 18 | |
| GA 22 VSD | 4 | 57.6 | 253.8 | 22 |
| 7 | 57.2 | 253.3 | 22 | |
| 10 | 64.8 | 221.0 | 22 | |
| 13 | 73.4 | 180.7 | 22 | |
| GA26 VSD | 4 | 57.6 | 293.4 | 22 |
| 7 | 57.2 | 292.3 | 22 | |
| 10 | 64.8 | 260.6 | 22 | |
| 13 | 73.4 | 214.9 | 22 | |
| GA30 VSD | 4 | 57.6 | 335.9 | 30 |
| 7 | 57.2 | 334.8 | 30 | |
| 10 | 64.8 | 297.7 | 30 | |
| 13 | 73.4 | 254.9 | 30 | |
Compresores de aire con inyección de aceite (GA 37-45-55-75-90) VSD
| Tipo de compresores | Max Máxima presión de trabajo (bar) | Capacidad FAD*mín.-máx. (m³/min) | Potencia del motor (kw) |
| 50/60 Hz VERSIÓN | |||
| GA37 VSD | 4 | 5.5-7.3 | 37 |
| 7 | 1.5-7.3 | 37 | |
| 10 | 1.4-6.2 | 37 | |
| 13 | 1.3-5.0 | 37 | |
| GA 45 VSD | 4 | 1.5-8.7 | 45 |
| 7 | 1.5-8.7 | 45 | |
| 10 | 1.4-7.5 | 45 | |
| 13 | 1.3-5.9 | 45 | |
| GA 55 VSD | 4 | 1.5-10.3 | 55 |
| 7 | 1.5-10.3 | 55 | |
| 10 | 1.4-9.1 | 55 | |
| 13 | 2.6-7.7 | 55 | |
| GA75 VSD | 4 | 2.4-14.8 | 75 |
| 7 | 2.3-14.7 | 75 | |
| 10 | 2.2-12.1 | 75 | |
| 13 | 2.0-10.3 | 75 | |
| GA90 VSD | 4 | 2.5-17.2 | 90 |
| 7 | 2.3-17.1 | 90 | |
| 10 | 2.2-14.5 | 90 | |
| 13 | 1.9-12.0 | 90 | |
Compresores de aire con inyección de aceite (GA 37-45-55-75-90) VSD
| Tipo de compresores | Máxima presión de trabajo | Capacity FAD* | Potencia del motor |
| Pack | Completo | (kw) | |
| (bar) | (m³/min) | ||
| GA132VSD-8.5 | 3.5 | 5.8-32.3 | 132 |
| 7 | 5.6-27.4 | 132 | |
| 8 | 5.5-26.1 | 132 | |
| GA132VSD-10 | 6 | 5.6-28.9 | 132 |
| 8 | 5.5-26.1 | 132 | |
| 9.5 | 5.3-24.2 | 132 | |
| GA132VSD-14 | 9 | 5.4-24.7 | 132 |
| 10 | 5.3-23.5 | 132 | |
| 13.5 | 4.9-19.5 | 132 | |
| GA160VSD-8.5 | 3.5 | 5.8-34.3 | 160 |
| 7 | 5.6-32.4 | 160 | |
| 8 | 5.5-30.9 | 160 | |
| GA160VSD-10 | 6 | 5.5-34.0 | 160 |
| 8 | 5.5-30.9 | 160 | |
| 9.5 | 5.3-28.8 | 160 | |
| GA160VSD-14 | 9 | 5.4-29.5 | 160 |
| 10 | 5.3-28.1 | 160 | |
| 13.5 | 4.9-23.6 | 160 |
Compresores de aire con inyección de aceite (GA 315 VSD GR 110-200 dos etapas 20 Bar)
| Tipo de compresores | Máxima presión de trabajo | Capacity FAD* | Potencia del motor (kw) | |
| Pack | Completo |
| ||
| (bar) | (bar) | (m³/min) | ||
| GA315VSD | 4 | 4 | 51.2 | 290 |
| 7 | 7 | 50.8 | 290 | |
| 10 | 9.9 | 42.6 | 290 | |
| GR 110-200 Dos etapas 13 bar | ||||
| GR 110 | 13 | 12.75 | 15.3 | 110 |
| GR 132 | 13 | 12.75 | 18.5 | 132 |
| GR 160 | 13 | 12.75 | 22.1 | 160 |
| GR 200 | 13 | 12.75 | 26.2 | 200 |
| GR 110-200 Dos etapas 20 bar | ||||
| GR 110 | 20 | 19.75 | 12.6 | 110 |
| GR 200 | 20 | 19.75 | 23.1 | 200 |
Atlas Copco Compresores de aire con inyección de aceite (G)

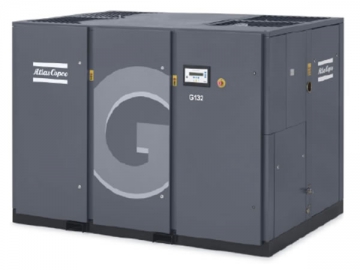

Compresores de aire con inyección de aceite (G 90-355)
| Tipo de compresores | Máxima presión de trabajo | Capacity FAD* | Potencia del motor (kw) | |
| Pack | Completo | Pack/completo | ||
| (bar) | (bar) | (m³/min) | ||
| G 90-7.5 | 7.5 | 7.3 | 16.8 | 90 |
| G 90-8.5 | 8.5 | 8.3 | 15.8 | 90 |
| G 90-10 | 10 | 9.8 | 14.4 | 90 |
| G 90-14 | 14 | 12.8 | 11.1 | 90 |
| G 110-7.5 | 7.5 | 7.3 | 20.0 | 110 |
| G 110-8.5 | 8.5 | 8.3 | 18.8 | 110 |
| G 110-10 | 10 | 9.8 | 17.0 | 110 |
| G 110-14 | 14 | 12.8 | 13.9 | 110 |
| G 132-7.5 | 7.5 | 7.3 | 24.1 | 132 |
| G 132-8.5 | 8.5 | 8.3 | 22.9 | 132 |
| G 132-10 | 10 | 9.8 | 21.0 | 132 |
| G 132-14 | 14 | 12.8 | 16.9 | 132 |
| G 160-7.5 | 7.5 | 7.3 | 30.4 | 160 |
| G 160-8.5 | 8.5 | 8.3 | 28.9 | 160 |
| G 160-10 | 10 | 9.8 | 26.8 | 160 |
| G 160-14 | 14 | 12.8 | 21.7 | 160 |
| G 200-7.5 | 7.5 | 7.3 | 35.5 | 200 |
| G 200-8.5 | 8.5 | 8.3 | 32.7 | 200 |
| G 200-10 | 10 | 9.8 | 30.8 | 200 |
| G 250-7.5 | 7.5 | 7.3 | 40.9 | 250 |
| G250-8.5 | 8.5 | 8.3 | 40.0 | 250 |
| G250-10 | 10 | 9.8 | 37.7 | 250 |
| G 315-7.5 | 7.5 | 55.1 | 315 | |
| G315-8.5 | 8.5 | 52.2 | 315 | |
| G315-10 | 10 | 48.2 | 315 | |
| G355-7.5 | 7.5 | 60.2 | 355 | |
| G355-8.5 | 8.5 | 57.6 | 355 | |
| G355-10 | 10 | 53.2 | 355 | |
| G355-13 | 13 | 46.4 | 355 | |

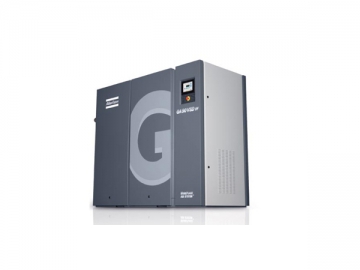

Compresores de aire con inyección de aceite (G 110-315) VSD
| Tipo de compresores | Máxima presión de trabajo (bar) | Capacity FAD* Pack/completo (m³/min) | Potencia del motor (kw) |
| G110 VSD | 8.5 | 51.2 | 110 |
| 14 | 50.8 | 110 | |
| G132 VSD | 8.5 | 42.6 | 132 |
| 14 | 15.3 | 132 | |
| G160 VSD | 8.5 | 18.5 | 160 |
| 14 | 22.1 | 160 | |
| G250 VSD | 8.5 | 26.2 | 250 |
| 13 | 12.6 | 250 | |
| G315 VSD | 10 | 23.1 | 315 |

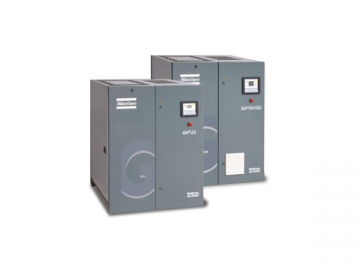

Atlas Copco Compresores de aire con inyección de aceite (GAe)
Detalles técnicos GAe 11-30 (50 Hz versión)
| Tipo de compresores | Máxima presión de trabajo | Capacidad FAD*mín.-máx. (m³/h) | Potencia del motor (kw) | |
| Lugar de trabajo (bar) | Full pack (bar) | |||
| 50 Hz VERSIÓN | ||||
| GAe 11 7.5 | 7.5 | 7.3 | 120.6 | 11 |
| 8.5 | 8.5 | 8.3 | 113.0 | 11 |
| 10 | 10 | 9.8 | 93.6 | 11 |
| 13 | 13 | 12.8 | 73.4 | 11 |
| GA e15 7.5 | 7.5 | 7.3 | 161.6 | 15 |
| 8.5 | 8.5 | 8.3 | 148.3 | 15 |
| 10 | 10 | 9.8 | 136.1 | 15 |
| 13 | 13 | 12.8 | 113.8 | 15 |
| GAe18 7.5 | 7.5 | 7.3 | 197.3 | 18.5 |
| 8.5 | 8.5 | 8.3 | 186.1 | 18.5 |
| 10 | 10 | 9.8 | 163.1 | 18.5 |
| 13 | 13 | 12.8 | 140.8 | 18.5 |
| GAe22 7.5 | 7.5 | 7.3 | 227.2 | 22 |
| 8.5 | 8.5 | 8.3 | 220.0 | 22 |
| 10 | 10 | 9.8 | 195.1 | 22 |
| 13 | 13 | 12.8 | 170.3 | 22 |
| GAe26 7.5 | 7.5 | 7.3 | 256.6 | 26 |
| 8.5 | 8.5 | 8.3 | 238.7 | 26 |
| 10 | 10 | 9.8 | 223.2 | 26 |
| 13 | 13 | 12.8 | 187.2 | 26 |
| GAe30 7.5 | 7.5 | 7.3 | 288.0 | 30 |
| 8.5 | 8.5 | 8.3 | 272.5 | 30 |
| 10 | 10 | 9.8 | 256.6 | 30 |
| 13 | 13 | 12.8 | 220.7 | 30 |
Detalles técnicos GA e 18-30 VSD (50 Hz versión)
| Tipo de compresores | Máxima presión de trabajoLugar de trabajo (bar) | Capacity FAD Min-Max (m³/h) | Potencia del motor (kw) | |||
| Min. | Max. | |||||
| 9 BARversión | ||||||
| GA e 18 VSD | 4 | 57.2 | 190.8 | 18 | ||
| 7 | 57.2 | 190.8 | 18 | |||
| 9 | 68.8 | 171.4 | 18 | |||
| GA e 22 VSD | 4 | 67.7 | 225.0 | 22 | ||
| 7 | 67.7 | 225.0 | 22 | |||
| 9 | 81.0 | 202.3 | 22 | |||
| GA e 30 VSD | 4 | 86.4 | 288.0 | 30 | ||
| 7 | 86.4 | 288.0 | 30 | |||
| 9 | 102.2 | 256.0 | 30 | |||
| 13 barversión | ||||||
| GA e 18 VSD | 4 | 47.5 | 158.4 | 18 | ||
| 7 | 47.5 | 158.4 | 18 | |||
| 10 | 47.5 | 158.4 | 18 | |||
| 13 | 56.9 | 142.6 | 18 | |||
| GA e 22 VSD | 4 | 58.3 | 194.4 | 22 | ||
| 7 | 58.3 | 194.4 | 22 | |||
| 10 | 58.3 | 194.4 | 22 | |||
| 13 | 68.8 | 171.7 | 22 | |||
| GA e 30 VSD | 4 | 73.4 | 244.8 | 30 | ||
| 7 | 73.4 | 244.8 | 30 | |||
| 10 | 73.4 | 244.8 | 30 | |||
| 13 | 87.5 | 219.2 | 30 | |||

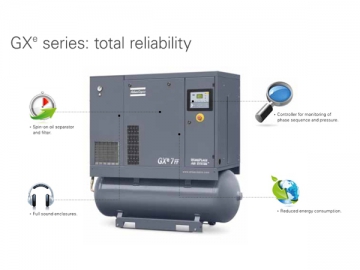

Atlas Copco Compresores de aire con inyección de aceite (GX) 2-11KW
| Tipo de compresores | Máxima presión de trabajo ( bar ) | Capacidad FAD*mín.-máx. ( m³/h ) | Potencia del motor ( kW ) |
| GX 2 | 10 | 14.4 | 2.2 |
| GX3 | 10 | 19.1 | 3 |
| GX4 | 10 | 28.1 | 4 |
| GX5 | 10 | 36.0 | 5.5 |
| GX7 | 7.5 | 70.6 | 7.5 |
| 10 | 58.0 | 7.5 | |
| 13 | 46.4 | 7.5 | |
| GX 11 | 7.5 | 97.2 | 11 |
| 10 | 83.9 | 11 | |
| 13 | 68.4 | 11 |
Productos relacionados
Comentarios
Otros productos
Novedades
Máquina automática de estañado y crimpado de terminales de cable plano de un lado
wirecrimping-ar.com
Más
Otros productos
Vídeos
