Chip Spreader Truck Asphalt Distributor, Chip Sealer 18 Type
Solicite un presupuesto
Asphalt chip sealing truck, road paving equipment, asphalt emulsion sprayer, chip sealing tuck distributor, we offer asphalt pavement machinery and equipment

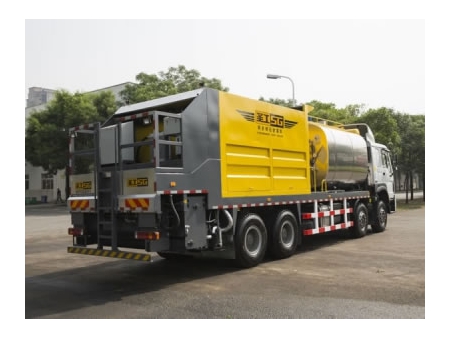

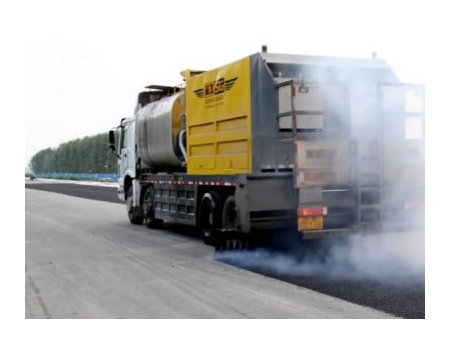

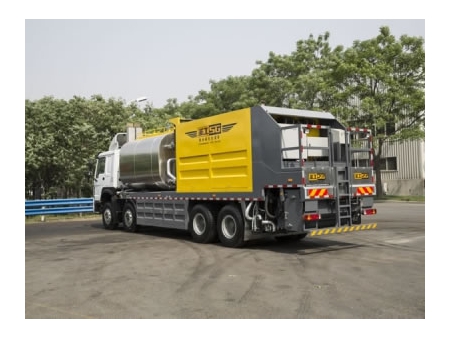

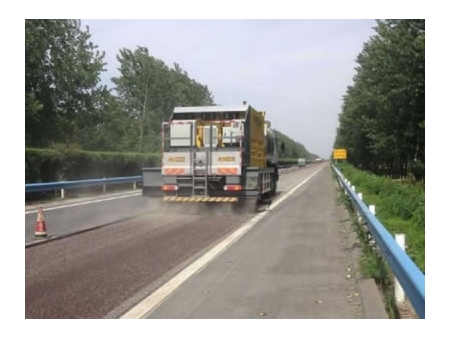

Gaoyuan has been in manufacturing road repair and maintenance equipment since 2004, and is a reliable chip seal distributor manufacturer and supplier. This chip seal truck HGY5318TFC is designed for spreading aggregate chips and spraying liquid asphalt to form pavement evenly, it is equipped two diesel burners to heat asphalt at a high speed. The aggregate is automatically conveyed to the double screw distributing device for spraying again by the spray bar, leading to a highly uniform spray. Therefore, this chip sealer combined with chip spreader and binder sprayer is for making asphalt pavement evenly.
Parameters of Chip Seal Distributor HGY5318TFC:| Parámetro | Reference Details |
| Modelo del chasis | ZZ3317N4667E1 |
| Chassis Manufacturer | SINOTRUK |
| Chassis Series | HOWO |
| Chassis Engine Model | D10.38-50 |
| Chassis Engine Power (kw/hp) | 276/380 |
| Emission Standard | National V |
| Wheel Base (mm) | 1800 4600 1350 |
| Total Weight (Kg) | 31000 |
| Auxiliary Engine Model | YCD4J23T8-100B |
| Auxiliary Engine Power (kw/hp) | 73.6/100 |
| Asphalt Tank Volume (L) | 8500 |
| Feed Bin Volume (m3) | 12 |
| Spray Width (mm) | 4200 |
| Asphalt Spray Volume (kg/m2) | 0.2-3 |
| Aggregate Spray Volume (L/m2) | 2-22 |
| Asphalt Spray Precision | 1% |
| Particle Size of Spraying Aggregate (mm) | 3-25 |
| Spray Medium | Rubber asphalt, Modified asphalt, Hot asphalt, Emulsified asphalt |
| Heating Method | Automatic temperature control of conduction oil heating |
| Heating Rate of Asphalt (℃/h) | 20 |
| Optimum Construction Speed (km/h) | 3-6 |
| Dimension (mm) (L×W×H) | 11980×2500×3860 |
| Please note: Semi-trailer and loader can be customized according to clients' needs. | |
- Gran capacidad de carga
- Bajo consumo de combustible
- Equipped with 276Kw (380 horsepower) engine for stronger power.
Work System:

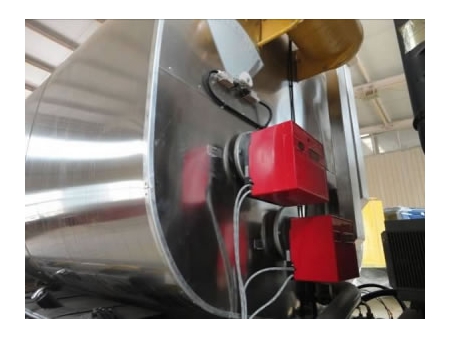

- The asphalt tank is equipped with 2 diesel burners to achieve high combustion efficiency and high heat rate (≥20℃/h). Besides,autoignition and automatic temperature control system are equipped for safe and stable operation.

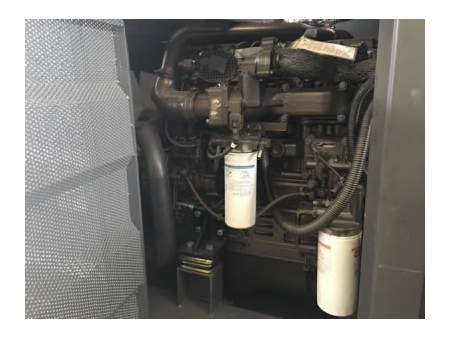

- The power of the hydraulic system is provided by the auxiliary engine for stable operation. Besides, the hydraulic system is independent from the main vehicle.

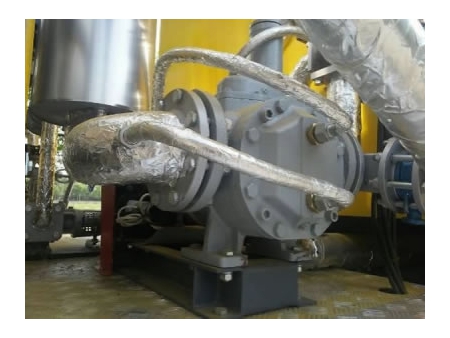

- Utiliza bomba de asfalto y bomba de aceite térmico de conducción JOHNSON que ofrecen un buen rendimiento autocebante, poseen un amplio rango de velocidad de rotación, buen sellado y un caudal estable.

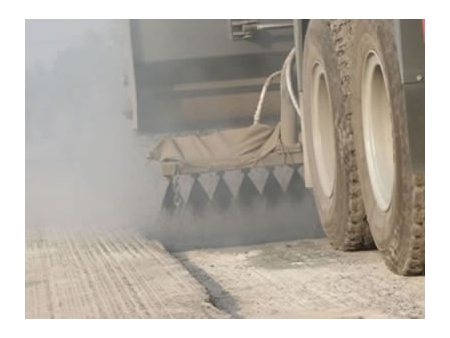

- Each spray nozzle can guarantee the uniform spray and superior spraying effect.
- The asphalt tank is equipped with mixing device.

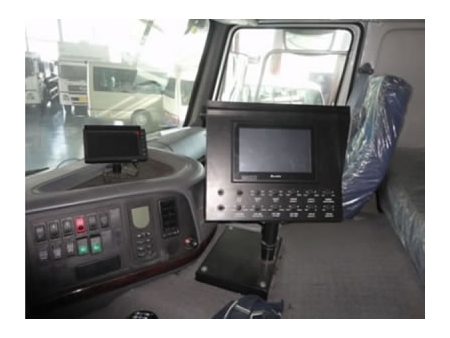

- The operator cab is equipped with construction monitoring system and automatic operation panel.
