Cáncamo giratorio de izaje de acero aleado
Solicite un presupuesto
Características
● Acero de aleación súper forjado - templado.
● Prueba individual a 2,5 veces el límite de carga de funcionamiento.
● Prueba de fatiga a 1,5 veces el límite de carga de funcionamiento por 20000 ciclos.
● Prueba de ruptura.
● Detección de 100% grietas Magnaflux.
● Acabado de superficie: polvo plastificado.
● Código de color: rojo RAL3020 / amarillo RAL1003.
● El ángulo entre la dirección de la fuerza de funcionamiento y el tornillo es 0° y 90°.

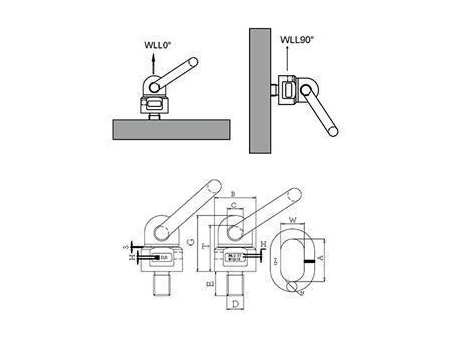

Código del artículo | Peso (kg) | Límite de carga de funcionamiento (t) (4:1) | DxE | B | C | G | T | A | W | N | H | S | |
Límite de carga de funcionamiento 90° | Límite de carga de funcionamiento 0° | ||||||||||||
8-SLR303-M8 | 0.41 | 0.3 | 0.6 | M8X13 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M10 | 0.43 | 0.5 | 0.9 | M10x18 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M10X90 | 0.38 | 0.5 | 1.0 | M10X90 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M12 | 0.44 | 0.5 | 1.0 | M12x18 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M12x40 | 0.52 | 0.5 | 1.0 | M12x40 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M12x45 | 0.47 | 0.5 | 1.0 | M12x45 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M12x110 | 0.53 | 0.5 | 1.0 | M12x110 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M14 | 0.45 | 1.12 | 2.0 | M14X20 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M16 | 0.46 | 1.12 | 2.0 | M16X35 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M16X40 | 0.48 | 1.12 | 2.0 | M16X40 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M16X100 | 0.54 | 1.12 | 2.0 | M16X100 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3 | 1 |
8-SLR303-M16X120 | 0.6 | 1.12 | 2.0 | M16X120 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3.5 | 1 |
8-SLR303-M20 | 0.96 | 2 | 4 | M20X30 | 4.95 | 19 | 68 | 56 | 70 | 35 | 16 | 3.5 | 1 |
8-SLR303-M20X120 | 1.17 | 2 | 4 | M20X120 | 4.95 | 19 | 68 | 56 | 70 | 35 | 16 | 3.5 | 1 |
8-SLR303-M24 | 1.45 | 3.15 | 6.3 | M24X40 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
8-SLR303-M24X40 | 1.42 | 3.15 | 6.3 | M24x90 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
8-SLR303-M24X90 | 1.66 | 3.15 | 6.3 | M24x90 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
8-SLR303-M24x120 | 1.74 | 3.15 | 6.3 | M24X120 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
8-SLR303-M27 | 1.47 | 3.15 | 6.3 | M27X35 | 57 | 22 | 78 | 65.5 | 85 | 40 | 20 | 3.5 | 1.5 |
8-SLR303-M30(5T) | 2.17 | 5.3 | 10.6 | M30X35 | 66 | 23.5 | 96.5 | 80.5 | 85 | 40 | 20 | 4 | 1.5 |
8-SLR303-M30x38 | 2.18 | 5.3 | 10.6 | M30X38 | 66 | 23.5 | 96.5 | 80.5 | 85 | 40 | 20 | 4 | 1.5 |
8-SLR303-M30x120 | 2.65 | 5.3 | 10.6 | M30X120 | 66 | 23.5 | 96.5 | 80.5 | 85 | 40 | 22 | 4 | 1.5 |
8-SLR303-M30(8T) | 3.57 | 8 | 11.8 | M30X35 | 80 | 28 | 112 | 92 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M30x38 | 3.58 | 8 | 11.8 | M30X38 | 80 | 28 | 112 | 92 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M30x120 | 4.01 | 8 | 11.8 | M30x120 | 80 | 28 | 112 | 92 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M36x90 | 4.17 | 8 | 11.8 | M36X90 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M36x400 | 6.41 | 8 | 11.8 | M36x400 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M39 | 3.65 | 8 | 11.8 | M39x50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M39x90 | 3.71 | 8 | 11.8 | M39X90 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
8-SLR303-M42 | 3.62 | 10 | 15 | M42X50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M42X60 | 6.72 | 10 | 15 | M42X60 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M42X130 | 4.46 | 10 | 15 | M42X130 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M42X180 | 5.0 | 10 | 15 | M42X180 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M45X60 | 4.17 | 10 | 15 | M45X60 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M48 | 4.02 | 10 | 15 | M48X50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M48X110 | 4.8 | 10 | 15 | M48X110 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
8-SLR303-M56X84 | 11.6 | 15 | 25 | M56X84 | 117 | 42 | 310 | 280 | 152 | 70 | 32 | 7 | 2.5 |
8-SLR303-M64X95 | 12.4 | 15 | 25 | M64X95 | 117 | 42 | 310 | 280 | 152 | 70 | 32 | 7 | 2.5 |
