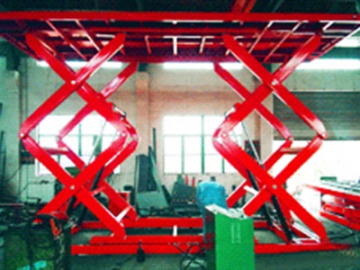

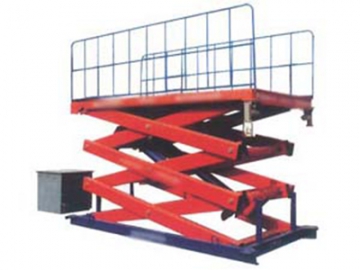

Plataforma de elevación
Solicite un presupuesto
| Modelo | Altura de elevación (m) | Peso de elevación (kg) | Dimensiones de la plataforma (mm) | Dimensiones generales máximas (mm) | Potencia máxima del motor (kw) | Peso de la máquina (kg) |
| SJY0.3-4 | 4 | 300 | 1650×750 | 1820×950×1970 | 2.2 | 400 |
| SJY0.3-6 | 6 | 300 | 1650×750 | 1820×950×2160 | 2.2 | 600 |
| SJY0.5-6 | 6 | 500 | 1650×750 | 1820×950×2160 | 2.2 | 700 |
| SJY0.3-8 | 8 | 300 | 1650×1000 | 2100×1200×2460 | 2.2 | 1200 |
| SJY0.5-8 | 8 | 500 | 1980×1220 | 2600×1550×2380 | 2.2 | 1400 |
| SJY0.8-8 | 8 | 800 | 2000×1220 | 2600×1550×2640 | 2.2 | 1700 |
| SJY0.3-10 | 10 | 300 | 2100×1220 | 2700×1550×2380 | 2.2 | 1500 |
| SJY1.0-10 | 10 | 1000 | 2220×1220 | 2820×1720×2850 | 3 | 2380 |
| SJY0.3-12 | 12 | 300 | 2550×1500 | 3150×2000×2850 | 2.2 | 2580 |
| SJY1.0-12 | 12 | 1000 | 2600×1500 | 3200×2015×3090 | 3 | 2580 |
| SJY0.3-14 | 14 | 300 | 2990×1600 | 3550×2120×2850 | 2.2 | 3000 |
| SJY0.3-16 | 16 | 300 | 3210×1600 | 3890×2120×3030 | 3 | 3900 |
| SJY0.3-18 | 18 | 300 | 3210×1600 | 3890×2120×3250 | 3 | 4300 |
