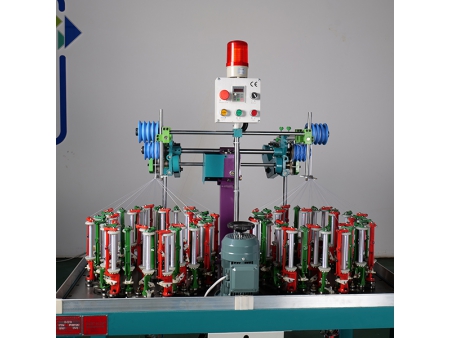

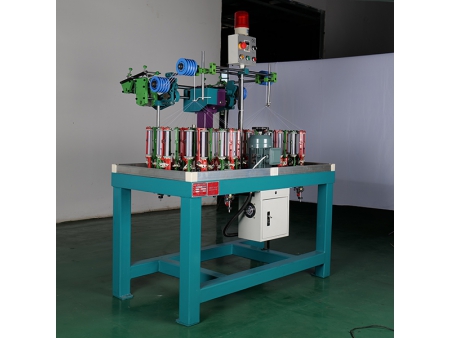

Máquina trenzadora, de tejido redondo

Solicite un presupuesto

Sitio web: http://solutions-textile.com/6-2-high-speed-round-cord-braiding-machines.html

Esta máquina trenzadora es especial para poder trabajar con tejido redondo, siendo especial para los tejidos de distintas cuerdas redondas. Este tipo de máquina trenzadora presenta doble huso y trabaja bajo control de frecuencia, lo cual permite optimizar el rendimiento.

Estas máquinas son utilizadas para realizar productos como el caso de los pasadores de zapatos, tirantes de vestimentas, cintas elásticas, cinta de empujar, entre otros.

Parámetros

Modelo	Cabezales	Portabobinas	Velocidad máxima del engranaje horn (rpm)	Potencia (kW)	Tamaño de la bobina
C0-5-2-162	2	5	150	0.75	A13
CO-7-2-120	2	6	280	0.55	A 04
CO-9-4-80	4	9	360	0.55	A 01
CO-9-4-90	4	9	300	0.55	A 04
CO-9-8-80	8	9	360	1.1	A 01
CO-9-8-90	8	9	300	1.1	A 04
CO-11-8-80	8	11	360	0.75	A 01
CO-11-8-90	8	11	300	0.75	A 04
CO-12-4-80	4	12	360	0.55	A 01
CO-12-4-90	4	12	300	0.55	A 04
CO-13-2-80	2	13	360	0.55	A 01
CO-13-2-90	2	13	300	0.55	A 04
CO-13-2-130	2	13	242	0.75	A 13
CO-13-4-80	4	13	360	0.55	A 01
CO-13-4-90	4	13	300	0.55	A 04
CO-16-4-80	4	16	360	0.75	A 01
CO-16-4-90	4	16	300	0.75	A 04
CO-16-2-80	2	16	360	0.37	A 01
CO-16-2-90	2	16	300	0.37	A 04
CO-17-2-80	2	17	360	0.55	A 01
CO-17-2-90	2	17	300	0.55	A 04
CO-17-2-13	2	17	242	0.75	A 13
CO-17-4-80	4	17	360	0.75	A 01
CO-17-4-90	4	17	300	0.75	A 14
CO-20-4-80	4	20	360	0.75	A 01
CO-20-4-90	4	20	300	0.75	A 04
CO-21-2-80	2	21	360	0.55	A 01
CO-21-2-90	2	21	300	0.55	A 04
Co-21-4-80	4	21	360	0.75	A 01
CO-21-4-90	4	21	300	0.75	A 04
CO-24-2-80	2	24	360	0.55	A 01
CO-24-2-90	2	24	300	0.55	A 04
CO-25-2-80	2	25	360	0.55	A 01
CO-25-2-90	2	25	300	0.55	A 04
CO-25-4-80	4	25	360	0.75	A 01
CO-25-4-90	4	25	300	0.75	A 04
CO-25-2-11	2	25	230	0.75	A 07
CO-25-2-13	2	25	242	0.75	A 13
CO-26-2-90	2	26	300	0.55	A 01/04
CO-26-2-100	2	26	288	0.55	A 01/04
CO-27-2-90	2	27	300	0.55	A 01
CO-28-2-110	2	28	230	0.55	A 01
CO-29-2-80	2	29	360	0.55	A 01
CO-29-2-90	2	29	300	0.55	A 04
CO-29-2-11	2	29	230	0.75	A 01
CO-32-2-80	2	32	360	0.75	A 01
CO-32-2-90	2	32	300	0.75	A 04
CO-33-2-80	2	33	360	0.75	A 01
CO-33-2-90	2	33	300	0.75	A 04
CO-36-2-80	2	36	360	0.75	A 01
CO-36-2-90	2	36	300	0.75	A 04
CO-36-2-110	2	36	230	0.75	A012
C0-37-2-80	2	37	360	0.75	A 04
CO-37-90	1	37	300	0.75	A 01
CO-37-100	1	37	288	0.55	A 01
CO-37-2-90	2	37	300	0.75	A 01
CO-39-100	1	39	288	0.55	A 01
CO-40-80	1	40	360	0.75	A 01
CO-40-90	1	40	300	0.75	A 04
CO-40-2-80	2	40	360	0.75	A 01
CO-40-2-90	2	40	300	0.75	A 04
CO-41-80	1	41	360	0.75	A 01
CO-41-90	1	41	300	0.75	A 04
CO-41-110	1	41	230	0.55	A 07
