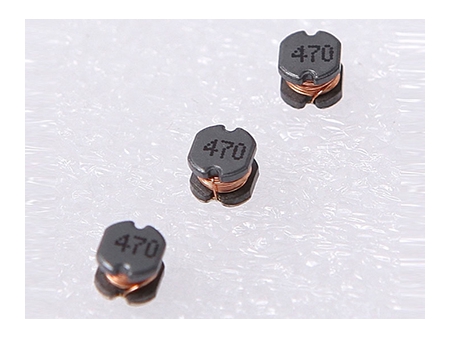

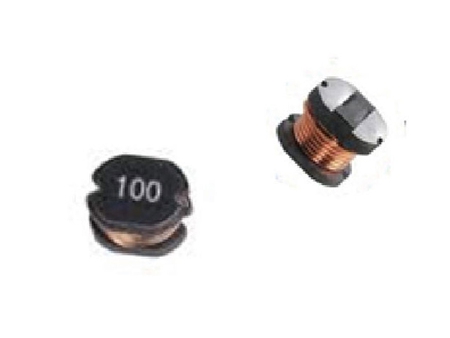

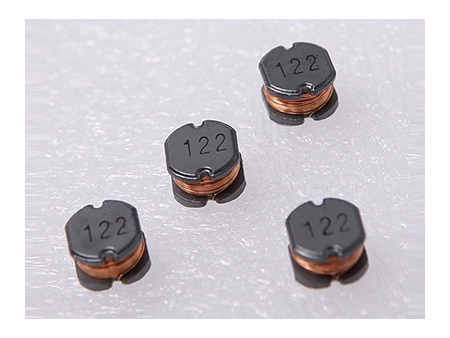

Inductor de potencia SMD, sin blindaje

Solicite un presupuesto

Nosotros: http://inductorscn.com/1-5-2-smd-unshielded-power-inductor.html

Los inductores de potencia SMD sin blindaje están diseñados para soportar un elevado índice de saturación en la tecnología de montaje de superficie.

Aplicaciones
Fuente de alimentación para VTR, equipos de ofimática, cámaras digitales, LCD TV set, notebook PC, equipos de radiofrecuencia portable, convertidores DC/DC, etc.

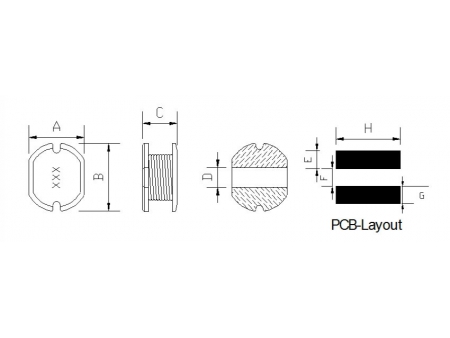

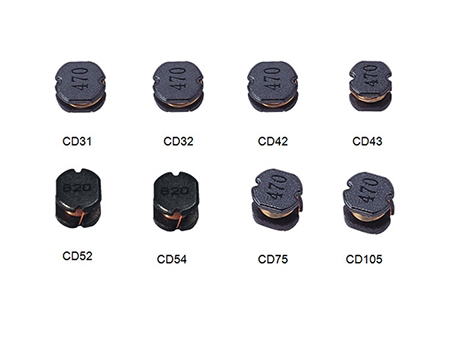

Formas y dimensiones(UNIT:mm)

Modelo	A±0.30	B±0.30	C(Max)	D	E	F	G	H
CD31	3.0	3.50	1.80	1.0	1.30	0.90	1.30	3.50
CD32	3.0	3.50	2.40	1.0	1.30	0.90	1.30	3.50
CD42	4.0	4.50	2.30	1.50	1.80	1.20	1.80	4.50
CD43	4.0	4.50	3.50	1.50	1.80	1.20	1.80	4.50
CD51	5.20	5.80	2.30	1.50	2.70	1.20	2.70	5.80
CD52	5.20	5.80	2.80	2.0	2.40	1.80	2.40	5.80
CD53	5.20	5.80	3.80	1.80	2.70	1.20	2.70	5.80
CD54	5.20	5.80	4.80	1.50	2.60	1.40	2.60	5.80
CD73	7.0	7.80	3.80	2.50	3.0	2.0	3.0	7.50
CD75	7.0	7.80	5.20	2.50	3.0	2.0	3.0	7.50
CD104	9.0	10.0	4.20	3.20	3.75	2.50	3.75	9.50
CD105	9.0	10.0	5.80	3.20	3.75	2.50	3.75	9.50

Tabla de especificaciones
SERIES:CD31,CD32

Número de serie	Inductancia (uH)(※)	Tolerancia	Rdc(ohm)Max	Tensión nominal Amp(※)
CD31/32-1R0	1.0	M	9m/48m	1.20/2.0
CD31/32-1R8	1.8	M	68m/56m	1.10/1.80
CD31/32-2R2	2.2	M	78m/78m	0.98/1.40
CD32-2R7	2.7	M	98m	1.3
CD32-3R3	3.3	M	109m	1.25
CD32-3R9	3.9	M	148m	1.2
CD31/32-4R7	4.7	M	163m/173m	0.90/1.10
CD31/32-5R6	5.6	M	182m/193m	0.85/0.90
CD31/32-6R8	6.8	M	234m/220m	0.81/0.85
CD31/32-8R2	8.2	M	260m/247m	0.71/0.80
CD31/32-100	10.0	M	306m/286m	0.61/0.73
CD31/32-120	12.0	M	377m/325m	0.58/0.62
CD31/32-150	15.0	M	442m/468m	0.53/0.60
CD31/32-180	18.0	M	550m/546m	0.48/0.53
CD31/32-220	22.0	M	637m/611m	0.43/0.50
CD31/32-270	27.0	M	767m/680m	0.41/0.42
CD31/32-330	33.0	M	1.01/0.96	0.37/0.40
CD31/32-390	39.0	M	1.11/1.05	0.34/0.36
CD31/32-470	47.0	K	1.47/1.20	0.30/0.34
CD32-560	56.0	K	1.53	0.32
CD32-680	68.0	K	1.76	0.3
CD32-820	82.0	K	239	0.28
CD32-101	100.0	K	2.67	0.25
CD32-121	120.0	K	3.72	0,20
CD32-151	150.0	K	4.29	0.19
CD32-181	180.0	K	4.81	0.17
CD32-221	220.0	K	6.63	0.16
CD32-271	270.0	K	7.80	0.13
CD32-331	330.0	K	9.50	0.12
CD32-391	390.0	K	10.50	0.115
CD32-471	470.0	K	12.10	0.09
CD32-561	560.0	K	13.30	0.08
CD32-681	680.0	K	18.20	0.07

※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.

※ Prueba de inductancia Fr. 100KHz 100mA(HP 4277A) a 20℃(L<10uH)
Prueba de inductancia Fr. 1.0KHz 100mA(HP 4277A) a 20℃(L>10uH)
※ En esta tabla no se incluye la totalidad de las especificaciones, con lo que puede contactarnos para más información.

Tabla de especificaciones
Serie:CD42,CD43

Número de serie	Inductancia (uH)(※)	Tolerancia	Rdc(ohm)Max	Tensión nominal Amp(※)
CD43-1R0	1.0	M	20.0m	2.60
CD42-1R2	1.2	M	22.0m	1.25
CD42-1R5	1.5	M	25.0m	1.20
CD43-2R2	2.2	M	42.0m	2.30
CD43-3R3	3.3	M	51.0m	2.10
CD43-3R9	3.9	M	73.0m	1.90
CD42/43-4R7	4.7	M	72/76m	0.65/1.60
CD42/43-5R6	5.6	M	81/83m	0.60/1.45
CD42/43-6R8	6.8	M	100/100m	0.56/1.35
CD42/43-8R2	8.2	M	107/120m	0,51/1.30
CD42/43-100	10.0	M	143/150m	0.45/1.00
CD42/43-120	12.0	M	163/155m	0.40/0.90
CD42/43-150	15.0	M	195/195m	0.39/0.80
CD42/43-180	18.0	M	247/230m	0.33/0.70
CD42/43-220	22.0	M	300/270m	0.31/0.60
CD42/43-270	27.0	M	340/310m	0.28/0.55
CD42/43-330	33.0	M	420/345m	0.25/0.50
CD42/43-390	39.0	M	495/400m	0.24/0.48
CD42/43-470	47.0	K	618/525m	0.21/0.40
CD42/43-560	56.0	K	728/595m	0.19/0.38
CD42/43-680	68.0	K	870/740m	0.18/0.33
CD42/43-820	82.0	K	1030/880m	0.17/0.29
CD42/43-101	100.0	K	137/1.20	0.15/0.26
CD42/43-121	120.	K	1.53/1.25	0.14/0.24
CD42/43-151	150.0	K	1.87/1.60	0.12/0.22
CD42/43-181	180.0	K	2.34/2.00	0.10/0.19
CD42/43-221	220.0	K	2.73/2.35	0.095/0.18
CD42/43-271	270.0	K	3.61/3.25	0.092/0.16
CD42/43-331	330.0	K	4.32/3.55	0.082/0.15
CD42/43-391	390.0	K	5.41/4.20	0.074/0.13
CD42/43-471	470.0	K	6.33/4.90	0.065/0.12
CD43-561	560.0	K	6.50	0.10

※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.

Tabla de especificaciones
Serie:CD51,CD52,CD53,CD54

Número de serie	Inductancia (uH)(※)	Tolerancia	Rdc(ohm)Max	Tensión nominal Amp(※)
CD51/52/53/54-1R0	1	M	25/13.7/16.5/13.0m	2.80/3.55/3.70/5.40
CD51/52/53/54-1R5	1.5	M	32/28.6/19.5/16.9m	2.50/3.40/3.50/4.70
CD51/52/53/54-1R8	1.8	M	35/30.0/22.0/19.5m	2.30/2.50/3.00/4.50
CD52/53/54-2R2	2.2	M	32.5/25.0/22.101	2.35/2.85/4.00
CD52-2R7	2.7	M	35.0m	2.7
CD51/52/53/54-3R3	3.3	M	69/48.0/39.5/31.2m	1.60/2.20/2.40/3.70
CD51/52/53/54-3R9	3.9	M	83.2/63.5/46.0/36.4m	1.45/2.10/2.25/3.20
CD51/52/53/54-4R7	4.7	M	91.0/75.0/52.0/52.0m	1.43/1.95/1.90/3.10
CD51/52/53/54-5R6	5.6	M	103.0/87.6/58.0/54.6m	1.40/1.75/1.88/2.80
CD51/52/53/54-6R8	6.8	M	212.0/95.0/71.2/58.5m	1.20/1.56/1.85/2.40
CD51/52/53/54-8R2	8.2	M	165.0/118.0/80.6/62.4m	0.95/1.50/1.81/2.00
CD51/52/53/54-100	10	M	192.0/151.0/93.6/87.9m	0.90/1.40/1.78/1.42
CD51/52/53/54-120	12	M	208.0/156.0/126.0/95.4m	0.87/1.25/1.60/138
CD51/52/53/54-150	15	M	259.0/234.0/139.0/105.0m	0.87/1.25/1.60/138
CD51/52/53/54-180	18	M	280.0/240.0/160.0/117.0m	0.82/1.00/1.30/1.22
CD51/52/53/54-220	22	M	389.0/298.0/192.0/169.0m	0.69/0.95/1.29/1.10
CD51/52/53/54-270	27	M	411.0/324.0/240.0/185.0m	0.67/0.93/1.10/0.95
CD51/52/53/54-330	33	M	533.0/408.0/325.0/208.0m	0.63/0.84/0.95/0.86
CD51/52/53/54-390	39	M	611.0/435.0/237.0/215.0m	0.61/0.78/0.92/0.78
CD51/52/53/54-470	47	K	735.0/570.0/435.0/355.0m	0.54/0.73/0.82/0.71
CD51/52/53/54-560	56	K	857.0/638.0/553.0/378.0m	0.52/0.63/0.80/0.66
CD51/52/53/54-680	68	K	1040/800.0/628.0/395.0m	0.49/0.58/0.76/0.60
CD51/52/53/54-820	82	K	1350/880.0/785.0/420.0m	0.47/0.51/0.67/0.56
CD51/52/53/54-101	100	K	1560/1130/848.0/611.0m	0.36/0.45/0.62/0.51
CD51/52/53/54-121	120	K	1.68/1.33/1.03/0.76	0.34/0.42/0.60/0.47
CD51/52/53/54-151	150	K	2.37/1.92/1.44/0.85	0.30/0.38/0.48/038
CD51/52/53/54-181	180	K	2.65/2.13/1.64/1.04	0.28/0.33/0.43/036
CD51/52/53/54-221	220	K	3.21/2.50/2.05/1.45	0.27/0.32/0.37/0.34
CD51/52/53/54-271	270	K	5.16/3.02/2.46/1.04	0.24/0.31/0.33/0.31
CD51/52/53/54-331	330	K	6.00/3.87/3.71/1.76	0.21/0.28/0.30/0.28
CD51/52/53/54-391	390	K	6.46/4.47/4.24/2.08	0.20/0.23/0.26/0.26
CD51/52/53/54-471	470	K	7.53/5.66/4.45/2.90	0.16/0.21/0.23/0.24
CD51/52/53/54-561	560	K	9.62/6.33/4.70/3.12	0.14/0.19/0.22/0.22
CD51/52/53/54-681	680	K	11.1/7.53/6.42/3.90	0.12/0.18/0.21/0.20
CD51/52/53/54-821	820	K	12.6/9.54/7.36/5.20	0.10/0.16/0.18/0.19

※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.

Tabla de especificaciones
Serie:CD73,CD75,CD104,CD105

Número de serie	Inductancia (Uh)(※)	Tolerancia	Rdc(ohm)Max	Tensión nominal Amp(※)
CD75/105-1R0	1.0	M	13.0/8.45m	5.20/8.00
CD73/104-1R2	1.2	M	9.10/9.88m	5.60/7.50
CD105-1R5	1.5	M	13.8m	6.8
CD105-1R8	1.8	M	15.6m	6.5
CD73/104-2R2	2.2	M	14.3/13.0m	4.00/4.70
CD73/104/105-2R7	2.7	M	16.9/16.9/17.8m	3.50/4.60/5.50
CD73/104/105-3R3	33	M	19.5/19.5/19.5m	3.00/4.00/5.00
CD73/104/104-3R9	3.9	M	22.1/23.4/19.9m	2.50/4.00/3.20
CD73/75/104/105-4R7	4.7	M	26.0/26.0/28.6/22.1m	2.00/3.80/3.20/4.60
CD73/75/104/105-5R6	5.6	M	31.2/27 J/31.2/23.8m	1.80/3.10/3.00/4.00
CD73/75/104/105-6R8	6.8	M	39.0/32.5/32.5/26.0m	1.70/2.80/2.70/3.60
CD73/75/104/105-8R2	8.2	M	45.0/39.0/39.0/31.2m	1.55/2.52/2.60/3.20
CD73/75/104/105-100	10.0	M	55.9/41.6/46.8/34.5m	1.43/231/235/2.58
CD73/75/104/105-120	12.0	M	59.8/49.4/56.6/40Jm	138/2.00/2.10/2.43
CD73/75/104/105-150	15.0	M	72.8/71.5/67.0/45.5m	1.23/1.81/1.86/2.26
CD73/75/104/105-180	18.0	M	85.8/84.5/81.3/48.5m	1.10/1.59/1.72/2.13
CD73/75/104/105-220	22.0	M	117.0/91.0/93.0/70.2m	1.06/1.50/1.61/1.93
CD73/75/104/105-270	27.0	M	130.0/106.0/109.0/84.1m	0.93/1.28/1.42/1.74
CD73/75/104/105-330	33.0	M	162.5/119.6/124.5/923m	0.82/1.20/1.24/1.46
CD73/75/104/105-390	39.0	M	192.4/149.5/150.8/124.8m	0.72/1.08/1.20/1.36
CD73/75/104/105-470	47.0	K	214.5/175.5/173.0/135.2m	0.68/1.04/1.08/1.26
CD73/75/104/105-560	56.0	K	247.0/208.0/197.6/158.5m	0.62/0.93/1.00/1.15
CD73/75/104/105-680	68.0	K	312.0/234.0/247.0/200.5m	0.58/0.83/0.90/1.10
CD73/75/104/105-820	82.0	K	338.0/273.0/299.0/230.0m	0.53/0.78/0.82/0.98
CD73/75/104/105-101	100.0	K	481.0/325.0/351.0/260.0m	0.50/0.73/0.72/0.95
CD73/75/104/105-121	120.0	K	520.0/390.0/429.0/351.0m	0.48/0.65/0.68/0.87
CD73/75/104/105-151	150.0	K	663.0/520.0/533.0/403.0m	0.41/0.58/0.60/0.74
CD73/75/104/105-181	180.0	K	715.0/598.0/625.0/495.0m	036/0.51/0.55/0.70
CD73/75/104/105-221	220.0	K	936.0/793.0/728.0/572.0m	030/0.48/0.52/0.65
CD73/75/104/105-271	270.0	K	1.10/0.88/0.93/0.73	0.28/0.40/0.42/0.54
CD73/75/104/105-331	330.0	K	130/1.13/1.15/0.85	0.27/0.39/0.40/0.50
CD73/75/104/105-391	390.0	K	1.60/130/130/1.04	0.24/035/037/0.46
CD73/75/104/105-471	470.0	K	1.86/1.68/1.50/1.18	0.22/033/033/0.40
CD73/75/104/105-561	560.0	K	234/1.90/1.91/1.42	0.20/030/0.32/0.30
CD73/75/104/105-681	680.0	K	2.60/2.47/2.47/1.99	0.19/0.27/0.26/0.28
CD73/75/104/105-821	820.0	K	3.50/2.86/2.82/2.03	0.17/0.25/0.24/0.24

※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.

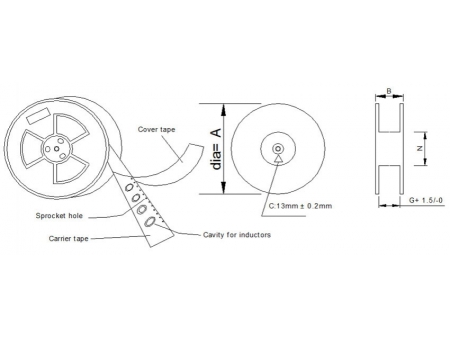

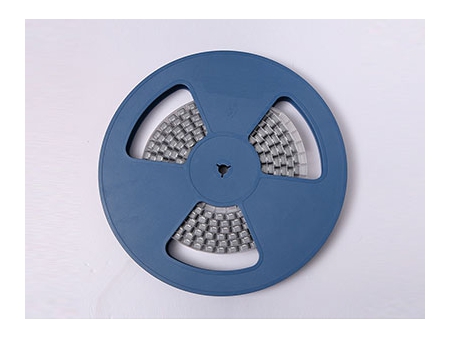

Embalaje del inductor de potencia SMD sin blindaje

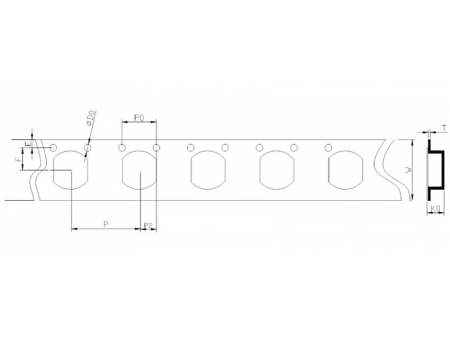

Dimensiones de la cinta y el rodillo:(unit:mm)

Especificaciones:

Tipo de embalaje	Tamaño rodillo(mm)				Tamaño cinta(mm)									Cant.,Pc/rod.
	A	B	G	N	E	F	D0	P	P0	P2	W	T	K0
LSMT-01	178	11	8.5	60	1.75	3.5	1.5	4	4	2	8	0.25	2.1	2000
2	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.3	1.7	1000
3	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.3	2.1	1000
4	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	3	2000
5	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	2.4	2000
6	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.35	5.5	2000
7	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.3	3.5	1500
8	330	21	16.5	100	1.75	11.5	1.5	12	4	2	24	0.4	5.9	1000
9	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.3	4	1000
10	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	4.2	1000
11	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	4.8	500
12	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	5.2	500
13	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	6	500
14	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	8.2	500
