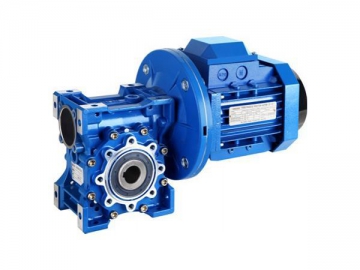

Reductor de velocidad de engranajes 750W
Descripción del producto
El reductor de velocidad de engranajes de 750w cuenta con una granalladora de engranajes de alta precisión para mecanizado. El engranaje tiene una cara endurecida que lo hace resistente y alarga su vida útil, más que el reductor de engranajes helicoidales. Estos reductores se utilizan ampliamente en máquinas de envasado de alimentos, equipos químicos, máquinas de trabajo en madera, grúas, maquinaria de construcción, etc.
Parámetros de combinación:
n2 (r/min) | M2max (Nm) | i Valores normales | i Valores reales | Fr2 (N) | fs | |||
Velocidad de salida | Par Máx de salida | Transmisión normal | Transmisión real | Carga radial de eje de salida | Factor de operación | Modelo de reductor de velocidad | Modelo de reductor de engranajes | Modelo de motor eléctrico |
48 | 138 | 30 | 29.33 | 2350 | 0.94 | BKM0502 MV8024 | BKM0502 80B5/B14 | 8024 |
58 | 113 | 25 | 24.07 | 2200 | 1.1 | |||
69 | 95 | 20 | 20.21 | 2080 | 1.1 | |||
94 | 70 | 15 | 14.92 | 1880 | 1.1 | |||
112 | 59 | 12.5 | 12.47 | 1770 | 2.2 | |||
134 | 49 | 10 | 10.47 | 1670 | 2.0 | |||
181 | 36 | 7.5 | 7.73 | 1510 | 2.2 | |||
72 | 91 | 12.5 | 12.47 | 2050 | 1.4 | BKM0502 MV90S6 | BKM0502 90B5/B14 | 90S6 |
86 | 77 | 10 | 10.47 | 1930 | 1.3 | |||
116 | 57 | 7.5 | 7.73 | 1750 | 1.4 | |||
44 | 146 | 60 | 63.33 | 2760 | 1.2 | BKM0633 MV8012 | BKM0633 80B5/B14 | 8012 |
53 | 121 | 50 | 52.48 | 2590 | 1.2 | |||
29 | 229 | 50 | 48.71 | 3190 | 0.87 | BKM0632 MV8024 | BKM0632 80B5/B14 | 8024 |
36 | 185 | 40 | 39.29 | 2970 | 0.97 | |||
46 | 143 | 30 | 30.31 | 2720 | 1.4 | |||
57 | 115 | 25 | 24.44 | 2530 | 1.6 | |||
69 | 95 | 20 | 20.25 | 2380 | 1.6 | |||
95 | 69 | 15 | 14.67 | 2130 | 1.6 | |||
110 | 60 | 12.5 | 12.67 | 2030 | 3.0 | |||
133 | 49 | 10 | 10.50 | 1910 | 3.0 | |||
184 | 36 | 7.5 | 7.60 | 1710 | 3.1 | |||
30 | 222 | 30 | 30.31 | 3150 | 0.9 | BKM0632 MV90S6 | BKM0632 90B5/B14 | 90S6 |
37 | 179 | 25 | 24.44 | 2930 | 1.0 | |||
44 | 148 | 20 | 20.25 | 2760 | 1.0 | |||
61 | 107 | 15 | 14.67 | 2470 | 1.0 | |||
71 | 93 | 12.5 | 12.67 | 2360 | 1.9 | |||
86 | 77 | 10 | 10.50 | 2210 | 2.0 | |||
118 | 56 | 7.5 | 7.60 | 1990 | 2.0 | |||
18.5 | 348 | 150 | 151.20 | 5040 | 1.0 | BKM0753 MV8012 | BKM0753 80B5/B14 | 8012 |
22 | 290 | 125 | 125.95 | 4750 | 1.0 | |||
28 | 228 | 100 | 99.22 | 4380 | 1.1 | |||
37 | 174 | 75 | 75.45 | 4000 | 1.2 | |||
45 | 144 | 60 | 62.43 | 3750 | 2.1 | |||
57 | 113 | 50 | 49.18 | 3470 | 2.1 | |||
22 | 287 | 60 | 62.43 | 4730 | 1.0 | BKM0753 MV8024 | BKM0753 80B5/B14 | 8024 |
28 | 226 | 50 | 49.18 | 4370 | 1.1 | |||
24 | 280 | 60 | 59.44 | 4660 | 1.3 | BKM0752 MV8024 | BKM0752 80B5/B14 | 8024 |
29 | 227 | 50 | 48.18 | 4340 | 1.5 | |||
35 | 189 | 40 | 40.13 | 4080 | 1.6 | |||
46 | 142 | 30 | 30.24 | 3720 | 2.5 | |||
56 | 119 | 25 | 25.19 | 3500 | 2.5 | |||
71 | 93 | 20 | 19.84 | 3230 | 2.6 | |||
93 | 71 | 15 | 15.09 | 2950 | 2.8 | |||
18.7 | 353 | 50 | 48.18 | 5030 | 1.0 | BKM0752 MV90S6 | BKM0752 90B5/B14 | 90S6 |
22 | 294 | 40 | 40.13 | 4730 | 1.0 | |||
30 | 221 | 30 | 30.24 | 4310 | 1.6 | |||
36 | 184 | 25 | 25.19 | 4050 | 1.6 | |||
45 | 145 | 20 | 19.84 | 3740 | 1.7 | |||
60 | 110 | 15 | 15.09 | 3410 | 1.8 | |||
72 | 91 | 12.5 | 12.49 | 3210 | 3.3 | |||
91 | 72 | 10 | 9.84 | 2960 | 3.3 | |||
120 | 55 | 7.5 | 7.48 | 2700 | 3.7 | |||
11.6 | 555 | 250 | 240.89 | 7470 | 0.9 | BKM0903 MV8012 | BKM0903 80B5/B14 | 8012 |
14.0 | 462 | 200 | 200.66 | 7030 | 1.0 | |||
18.5 | 348 | 150 | 151.20 | 6390 | 1.4 | |||
22 | 290 | 125 | 125.95 | 6010 | 1.7 | |||
28 | 228 | 100 | 99.22 | 5550 | 1.7 | |||
37 | 174 | 75 | 75.45 | 5070 | 1.7 | |||
45 | 144 | 60 | 62.43 | 4760 | 3.3 | |||
57 | 113 | 50 | 49.18 | 4390 | 3.4 | |||
11.1 | 580 | 125 | 125.95 | 7580 | 0.83 | BKM0903 MV8024 | BKM0903 80B5/B14 | 8024 |
14.1 | 457 | 100 | 99.22 | 7000 | 0.83 | |||
18.6 | 247 | 75 | 75.45 | 6390 | 0.86 | |||
22 | 287 | 60 | 62.43 | 6000 | 1.7 | |||
28 | 226 | 50 | 49.18 | 5540 | 1.7 | |||
24 | 278 | 60 | 59.04 | 5890 | 1.8 | BKM0902 MV8024 | BKM0902 80B5/B14 | 8024 |
29 | 227 | 50 | 48.18 | 5500 | 2.2 | |||
35 | 189 | 40 | 40.13 | 5170 | 2.5 | |||
46 | 142 | 30 | 30.24 | 4710 | 3.5 | |||
56 | 119 | 25 | 25.19 | 4430 | 4.0 | |||
71 | 93 | 20 | 19.84 | 4090 | 4.1 | |||
93 | 71 | 15 | 15.09 | 3730 | 4.2 | |||
14.4 | 447 | 60 | 62.43 | 6950 | 1.1 | BKM0903 MV90S6 | BKM0903 90B5/B14 | 90S6 |
18.3 | 352 | 50 | 49.18 | 6420 | 1.1 | |||
15.2 | 432 | 60 | 59.04 | 6820 | 1.2 | BKM0902 MV90S6 | BKM0902 90B5/B14 | 90S6 |
18.7 | 353 | 50 | 48.18 | 6370 | 1.4 | |||
22 | 294 | 40 | 40.13 | 6000 | 1.6 | |||
30 | 221 | 30 | 30.24 | 5460 | 2.3 | |||
36 | 184 | 25 | 25.19 | 5130 | 2.6 | |||
45 | 145 | 20 | 19.84 | 4740 | 2.6 | |||
60 | 110 | 15 | 15.09 | 4330 | 2.7 | |||
9.5 | 682 | 300 | 296.10 | 8880 | 1.1 | BKM1103 MV8012 | BKM1103 80B5 | 8012 |
11.5 | 562 | 250 | 244.29 | 8330 | 1.3 | |||
13.6 | 475 | 200 | 206.29 | 7870 | 1.6 | |||
18.3 | 353 | 150 | 153.33 | 7130 | 2.1 | |||
22 | 298 | 125 | 129.48 | 6740 | 2.5 | |||
27 | 239 | 100 | 103.64 | 6260 | 2.7 | |||
37 | 174 | 75 | 75.55 | 5630 | 3.0 | |||
9.1 | 706 | 150 | 153.33 | 8980 | 1.1 | BKM1103 MV8024 | BKM1103 80B5 | 8024 |
10.8 | 596 | 125 | 129.48 | 8490 | 1.3 | |||
13.5 | 477 | 100 | 103.64 | 7880 | 1.4 | |||
18.5 | 348 | 75 | 75.55 | 7090 | 1.5 | |||
22 | 296 | 60 | 64.18 | 6720 | 2.5 | |||
27 | 237 | 50 | 51.37 | 6240 | 2.7 | |||
24 | 279 | 60 | 59.22 | 6540 | 2.7 | BKM1102 MV8024 | BKM1102 80B5 | 8024 |
29 | 230 | 50 | 48.86 | 6130 | 3.3 | |||
34 | 194 | 40 | 41.26 | 5800 | 3.9 | |||
8.7 | 742 | 100 | 103.64 | 9130 | 0.88 | BKM1103 MV90S6 | BKM1103 90B5/B14 | 90S6 |
11.9 | 541 | 75 | 75.55 | 8220 | 0.96 | |||
14.0 | 460 | 60 | 64.18 | 7780 | 1.6 | |||
17.5 | 368 | 50 | 51.37 | 7230 | 1.8 | |||
15.2 | 434 | 60 | 59.22 | 7580 | 1.7 | BKM1102 MV90S6 | BKM1102 90B5/B14 | 90S6 |
18.4 | 358 | 50 | 48.86 | 7110 | 2.1 | |||
22 | 302 | 40 | 41.26 | 6720 | 2.5 | |||
29 | 225 | 30 | 30.67 | 6090 | 3.3 | |||
35 | 190 | 25 | 25.90 | 5750 | 4.0 | |||
43 | 152 | 20 | 20.73 | 5340 | 4.3 |
Si Ud necesita la selección de modelo detallada, dimensiones externas y dimensiones de conexión del reductor, puede encontrarlos aquí abajo:
Zhouyi es un productor y proveedor profesional de reductores de velocidad de engranajes cónicos helicoidales 750W desde 1990, ofreciendo accionamientos de velocidad variable para que coincidan con los motores eléctricos de diferentes potencias. Con el proceso de fabricación de acuerdo con el estándar IEC, nuestra empresa se dedica a proporcionar los motorreductores de alta calidad con una variedad de selecciones de modelos y configuraciones para satisfacer sus necesidades específicas de los equipos y máquinas industriales.
