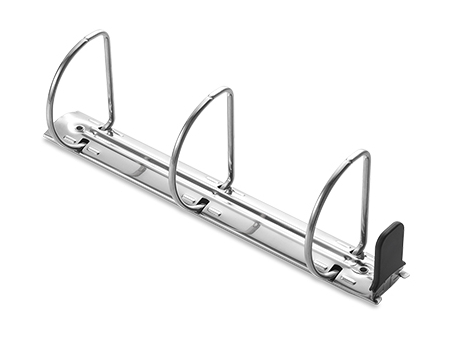

Mecanismo de anillas (una palanca)
Solicite un presupuesto
| Producto No. | Distancia entre anillas | Altura total | Altura interna | Ancho externo | Distancia de orificio a orificio | Longitud total | Ancho del mecanismo |
| OTD285-3-16/20 | 108/108 | 24.5 | 16.6 | 23.3 | 243 | 280 | 20 |
| OTD285-3-25/20 | 108/108 | 34 | 26 | 29.5 | 243 | 280 | 20 |
| OTD285-3-38/20 | 108/108 | 47.8 | 40 | 38.5 | 243 | 280 | 20 |
| OTD285-3-38/26 | 108/108 | 50 | 39 | 39 | 243 | 280 | 26 |
| OTD285-3-50/26 | 108/108 | 61 | 50.5 | 47.8 | 243 | 280 | 26 |
| OTD285-3-65/36 | 108/108 | 81 | 68.5 | 59.5 | 243 | 280 | 36 |
| OTD285-3-76/36 | 108/108 | 88 | 75 | 63 | 243 | 280 | 36 |
| OSTD285-3-25/17 | 108/108 | 31.5 | 21.3 | 35.6 | 243 | 280 | 17 |
| OSTD285-3-25/20 | 108/108 | 30 | 20.8 | 38.8 | 243 | 280 | 20 |
| OSTD285-3-38/20 | 108/108 | 48.5 | 35.4 | 45.6 | 243 | 280 | 20 |
| OSTD285-3-38/28 | 108/108 | 44.5 | 33 | 54 | 243 | 280 | 28 |
| OSTD285-3-52/28 | 108/108 | 59.5 | 48 | 56 | 243 | 280 | 26 |
| OSTD285-3-65/38 | 108/108 | 75 | 59 | 73 | 243 | 280 | 36 |
| OSTD285-3-78/38 | 108/108 | 87 | 71 | 68.5 | 243 | 280 | 36 |
