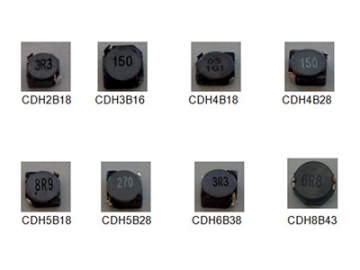

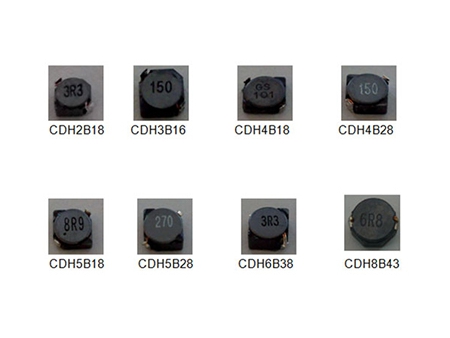

Inductor de potencia SMD, serie CDRH2B/3B/4B
El inductor de potencia SMD serie CDRH2B/3B/4B fabricados por Southern Group están hechos especialmente para los puntos de carga compactos.
Aplicaciones
Fuente de alimentación para VTR, equipos de ofimática, cámaras digitales, LCD TV set, notebook PC, equipos de radiofrecuencia, convertidores AC/DC, etc

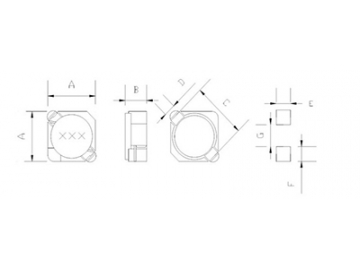

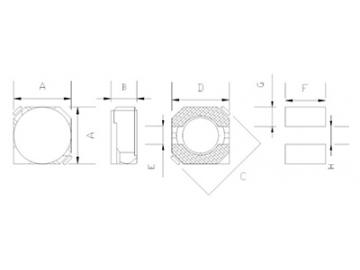

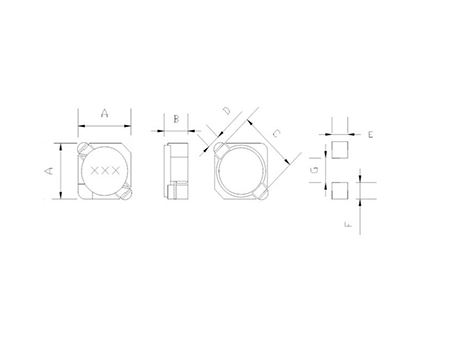

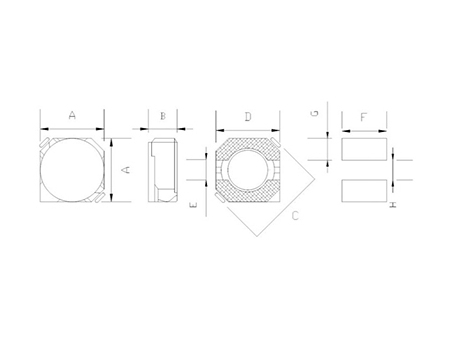

Modelo | Amax | Bmax | C | D | E | F | G | H | Cifra |
CDH3B12 | 4.0 | 1.4 | 4.4 | 1.1 | 1.5 | 1.4 | 2.4 | 5.2 | 1 |
CDH3B16 | 4.0 | 1.8 | 4.4 | 1.1 | 1.5 | 1.4 | 2.4 | 5.2 | 1 |
CDH3B16B | 4.0 | 1.8 | 5.5 | 4.0 | 1.0 | 4.0 | 1.5 | 1.0 | 2 |
CDH3B28 | 4.0 | 3.0 | 4.4 | 1.1 | 1.5 | 1.4 | 2.4 | 5.2 | 1 |
Modelo | Amax | Bmax | C | D | E | F | G | H | Cifra |
CDH2B09 | 3.2 | 1.15 | 3.30 | 1.10 | 1.30 | 1.30 | 1.70 | 4.30 | 1 |
CDH2B11 | 3.2 | 1.20 | 3.30 | 1.10 | 1.30 | 1.30 | 1.70 | 4.30 | 1 |
CDH2B18/LD | 3.2 | 2.0 | 3.30 | 1.00 | 1.30 | 1.30 | 1.70 | 4.30 | 1 |
CDH2B18/HP | 3.2 | 2.0 | 3.30 | 1.00 | 1.30 | 1.30 | 1.70 | 4.30 | 1 |
Modelo | Amax | Bmax | C | D | E | F | G | H | Cifra |
CDH4B18 | 5.0 | 2.0 | 6.9 | 4.5 | 1.5 | 5.3 | 1.9 | 1.5 | 2 |
CDH4B28 | 5.0 | 3.0 | 6.9 | 4.5 | 1.5 | 5.3 | 1.9 | 1.5 | 2 |
CDH5B18 | 6.0 | 2.0 | 8.2 | 5.5 | 2.0 | 6.3 | 2.15 | 2.0 | 2 |
CDH5B28 | 6.0 | 3.0 | 8.2 | 5.5 | 2.0 | 6.3 | 2.15 | 2.0 | 2 |
Serie: CDRH 2B09/2B11/2B18(LD)/2B18(HP)
Número de serie | Inductancia (uH)(※) | Tolerancia | Rdc(ohm)Max | Tensión nominal Amp(※) |
2B09 | 1.2 | M | 87.5m | 800m |
2B09/2B11 | 1.5 | M | 97.5m/71m | 730m/920m |
2B09 | 1.8 | M | 122.5m | 650m |
2B09/2B11/2B18LD/2B18HP | 2.2 | M | 150/103/43/69m | 600/740/1000/1650m |
2B09/2B11/2B18LD/2B18HP | 3.3 | M | 188/137/64/102m | 470/600/820/1500m |
2B09/2B11/2B18LD/2B18HP | 4.7 | M | 275/167/80/143m | 410/515/720/1250m |
2B09 | 5.6 | M | 400m | 370m |
2B09/2B11/2B18LD | 6.8 | M | 425/257/120m | 330/420/620m |
2B09 | 8.2 | M | 487.5m | 300m |
2B09/2B11/2B18LD/2B18HP | 10 | M | 562.5/371/189/349m | 280/378/475/774m |
2B11 | 12 | M | 411m | 328m |
2B11/2B18LD/2B18HP | 15 | M | 565/228/504m | 270/415/630m |
2B18LD/2B18HP | 22 | M | 332/735m | 324/540m |
2B18LD | 33 | M | 502m | 265m |
2B18LD | 39 | M | 657m | 234m |
2B18LD | 47 | M | 741m | 214m |
2B18LD | 68 | M | 1120m | 180m |
※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.
※ Prueba de inductancia Fr. 100KHz 100mA(HP 4277A) a 20℃(L<10uH时)
Prueba de inductancia Fr. 1.0KHz 100mA(HP 4277A) a 20℃(L>10uH)
※ En esta tabla no se incluye la totalidad de las especificaciones, con lo que puede contactarnos para más información.
Serie: CDRH 3B12/3B16/3B16(B)/3B28Número de serie | Inductancia (uH)(※) | Tolerancia | Rdc(ohm)Max | Tensión nominal Amp(※) |
3B12/3B16/ | 1.0 | M | 87/45m | 1.20/1.47 |
3B12/3B16/3B16B | 1.5 | M | 124/52/48m | 1.10/1.45/1.46 |
3B12 | 1.8 | M | 142m | 1.04 |
3B16/3B16B | 2.2 | M | 72/70m | 1.20/1.20 |
3B16/3B16B | 2.7 | M | 75/78m | 1.18/1.17 |
3B12/3B16/3B16B/3B28 | 3.3 | M | 239/85/86/72m | 0.8/1.1/1.02/1.85 |
3B16/3B16B | 3.9 | M | 95/98m | 1.0/0.98 |
3B12/3B16/3B16B/3B28 | 4.7 | M | 338/1.5/107/89m | 0.73/0.90/0.885/1.62 |
3B16/3B16B | 5.6 | M | 119.6/141m | 0.822/0.81 |
3B12/3B16/3B16B/3B28 | 6.8 | M | 406/170/163/120m | 0.64/0.73/0.74/120 |
3B16 | 8.2 | M | 190m | 0.621 |
3B12/3B16/3B16B/3B28 | 10.0 | M | 622/210/208/145m | 0.5/0.55/0.55/1.05 |
3B16/3B16B | 12.0 | M | 247/264m | 0.50/0.53 |
3B12/3B16/3B16B/3B28 | 15.0 | M | 977/295/293/213m | 0.43/0.45/0.45/0.9 |
3B16/3B16B | 18.0 | M | 416/364m | 0.41/0.42 |
3B12/3B16/3B16B/3B28 | 22.0 | M | 1.16/0.43/0.42/0*33 | 0.38/0.4/0.4/0.74 |
3B16/3B16B | 27.0 | M | 546/543m | 0.32/0.315 |
3B12/3B16/3B16B/3B28 | 33.0 | M | 1.90/0.68/0.68/0.48 | 0.315/0.32/0315/0.58 |
3B16/3B16B | 39.0 | M | 871/770m | 0.28/0.30 |
3B12/3B16/3B16B/3B28 | 47.0 | M | 23/0.96/1.07/0.6 | 0.26/0.26/0.29/0.48 |
3B16/3B16B | 56.0 | M | 1.09/1.19 | 0.242/0.248 |
3B16/3B16B | 68.0 | M | 1.25/133 | 0.219/0.215 |
3B16 | 82.0 | M | 1.5 | 0.20 |
3B16 | 100.0 | M | 1.68 | 0.187 |
3B16 | 120.0 | M | 2.15 | 0.178 |
3B16 | 150.0 | M | 2.6 | 0.150 |
3B16 | 180.0 | M | 2.86 | 0.138 |
3B16 | 220.0 | M | 4.55 | 0.120 |
3B16 | 270.0 | M | 5.07 | 0.105 |
3B16 | 330.0 | M | 5.89 | 0.098 |
3B16 | 390.0 | M | 6.5 | 0.096 |
3B16 | 470.0 | M | 7.15 | 0.085 |
3B16 | 560.0 | M | 9.75 | 0.070 |
3B16 | 680.0 | M | 12.74 | 0.068 |
※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.
※Prueba de inductancia Fr. 100KHz 100mA(HP 4277A) a 20℃(L<10uH)
Prueba de inductancia Fr. 1.0KHz 100mA(HP 4277A) a 20℃(L>10uH)
※ En esta tabla no se incluye la totalidad de las especificaciones, con lo que puede contactarnos para más información.
Serie: CDRH 4B18/4B28/5B18/5B28Número de serie | Inductancia (uH)(※) | Tolerancia | Rdc(ohm)Max | Tensión nominal Amp(※) |
4B18/4B28/5B18/5B28 | 1.0 | M | 28.6/25.7/17.7/15.6m | 1.80/2.7/3.0/3.5 |
4B18/5B18 | 1.5 | M | 45.5/23.4m | 1.45/2.3 |
5B28 | 1.8 | M | 22.1m | 2.7 |
4B18/4B28/5B18/5B28 | 2.2 | M | 52.0/32.8/36.4/24.7 m | 1.4/1.8/2.1/2.3 |
4B18/5B18/5B28 | 2.7 | M | 58.5/403/28.6m | 1.30/2.0/2.26 |
4B28 | 3.0 | M | 48.1m | 1.55 |
4B18/5B18/5B28 | 3.3 | M | 62.4/49.4/32^m | 1.15/1.83/2.23 |
4B18/4B28 | 3.9 | M | 65.0/48. lm | 0.9/1.5 |
4B18/4B28/5B18/5B28 | 4.7 | M | 78.0/52/65.0/39.0 | 0.86/1.35/1.6/1.9 |
4B18/4B28/5B18/5B28 | 5.6 | M | 98.8/58.5/72.8/44.2m | 0.82/1.21/1.45/1.76 |
4B18/4B28/5B18/5B28 | 6.8 | M | 143/88.4/78/52m | 0.78/1.15/1.31/1.63 |
4B18/5B18/5B28 | 8.2 | M | 156/96.2/58.5m | 0.7/1.10/1.50 |
4B18/4B28/5B18/5B28 | 10.0 | M | 159/120/124/78m | 0.62/1.0/1.05/1.30 |
4B28/5B18/5B28 | 12.0 | M | 140/153/84.5m | 0.84/0.95/1.20 |
4B18/4B28/5B18/5B28 | 15.0 | M | 247/156/196/115m | 0.5/0.75/0.85/1.10 |
5B18/5B28 | 18.0 | M | 210/119.6m | 0.79/1.0 |
4B18/4B28/5B18/5B28 | 22.0 | M | 260/247/290/156m | 0.42/0.7/0.7/0.89 |
4B28/5B18/5B28 | 27.0 | M | 299/330/189m | 0.59/0.66/0.8 |
4B18/4B28/5B18/5B28 | 33.0 | M | 0.55/033/0.59/0.21 | 0.34/0.57/0.59/0.73 |
4B18/4B28/5B18/5B28 | 39.0 | M | 0.59/035/0.52/0.51 | 0.32/0.52/0.51/0.69 |
4B18/4B28/5B18/5B28 | 47.0 | M | 0.85/0.45/0.60/0.26 | 0.30/0.50/0.48/0.61 |
4B18/4B28/5B18/5B28 | 56.0 | M | 0.91/0.47/0.67/0.34 | 0.28/0.42/0.43/0.56 |
4B18/4B28/5B18/5B28 | 68.0 | M | 1.0/0.55/0.84/0.36 | 0.25/0.35/0.40/0.50 |
4B18/4B28/5B18/5B28 | 82.0 | M | 13/0.78/0.98/0.42 | 0.23/0.33/0.36/0.46 |
4B18/4B28/5B18/5B28 | 100.0 | M | 1.56/0.86/1.2/0.57 | 0.20/0.30/0.33/0.42 |
4B18/4B28/5B18/5B28 | 120.0 | M | 2.1/1.3/1.3/0.68 | 0.19/0.28/0.3/0.4 |
4B18/4B28/5B18 | 150.0 | M | 2.34/1.5/1.61 | 0.155/0.25/0.27 |
4B18/4B28/5B18 | 180.0 | M | 2.6/1.6/2.05 | 0.145/0.23/0.25 |
4B18/4B28/5B18/5B28 | 220.0 | M | 3.38/1.82/2.29/1.30 | 0.14/0.21/0.23/0.29 |
4B18/4B28/5B18/5B28 | 270.0 | M | 4.03/2.86/2.99/1.52 | 0.135/0.185/0.20/0.26 |
4B18/4B28/5B18/5B28 | 330.0 | M | 4.56/3.25/3.51/2.21 | 0.13/0.17/0.19/0.23 |
4B18/4B28/5B18/5B28 | 390.0 | M | 5.07/4.55/4.16/2.40 | 0.125/0.155/0.16/0.21 |
4B18/4B28/5B18/5B28 | 470.0 | M | 5.46/5.07/4.81/2.60 | 0.12/0.14/0.15/0.19 |
4B18/4B28/5B18/5B28 | 560.0 | M | 8.19/5.46/5.20/2.96 | 0.11/0.13/0.14/0.18 |
4B18/4B28/5B18/5B28 | 680.0 | M | 10.0/6.11/6.37/3.77 | 0.10/0.12/0.13/0.17 |
※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.
※ Prueba de inductancia Fr. 100KHz 100mA(HP 4277A) a 20℃(L<10uH)
Prueba de inductancia Fr. 1.0KHz 100mA(HP 4277A) a 20℃(L>10uH)
※ En esta tabla no se incluye la totalidad de las especificaciones, con lo que puede contactarnos para más información.

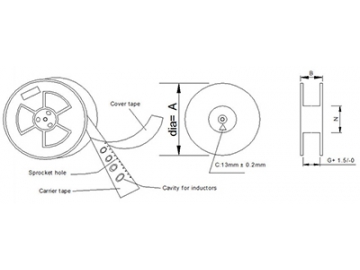

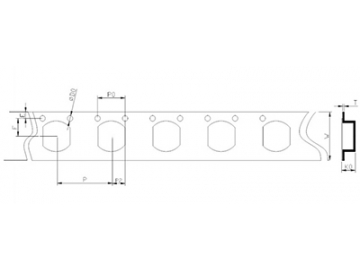

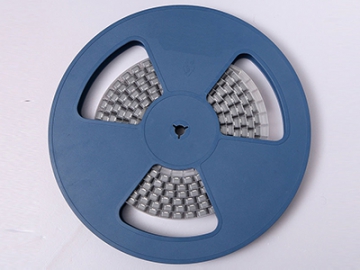

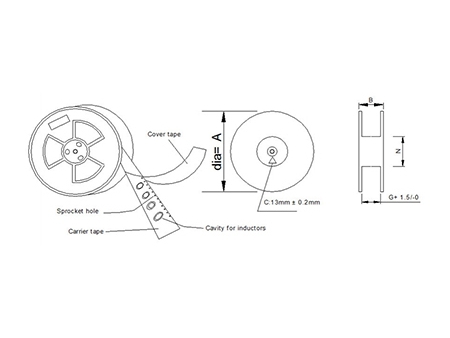

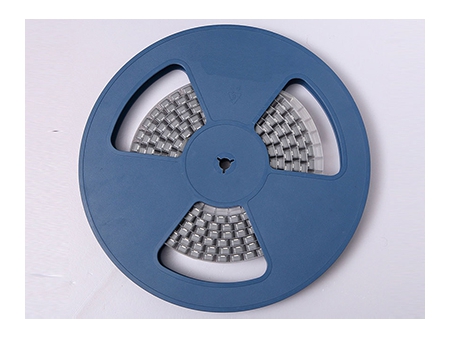

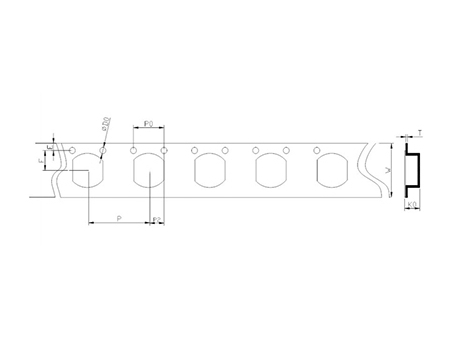

Embalaje del inductor de potencia SMD serie CDRH2B/3B/4BDimensiones de la cinta y el rodillo:(unidad:mm)
Tipo de embalaje | Tamaño rodillo (mm) | Tamaño cinta(mm) | Cant, Pc/rod. | |||||||||||
A | B | G | N | E | F | D0 | P | P0 | P2 | W | T | K0 | ||
LSMT-01 | 178 | 11 | 8.5 | 60 | 1.75 | 3.5 | 1.5 | 4 | 4 | 2 | 8 | 0.25 | 2.1 | 2000 |
2 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 1.7 | 1000 |
3 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 2.1 | 1000 |
4 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 3 | 2000 |
5 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 2.4 | 2000 |
6 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.35 | 5.5 | 2000 |
7 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 3.5 | 1500 |
8 | 330 | 21 | 16.5 | 100 | 1.75 | 11.5 | 1.5 | 12 | 4 | 2 | 24 | 0.4 | 5.9 | 1000 |
9 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 4 | 1000 |
10 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.2 | 1000 |
11 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.8 | 500 |
12 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 5.2 | 500 |
13 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 6 | 500 |
14 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 8.2 | 500 |
** En la lista no se muestran todos los tipos de embalaje, ya que los productos se embalan en función de cada producto para su transporte. Por lo que el embalaje no es adecuado para los modelos de la lista.**
